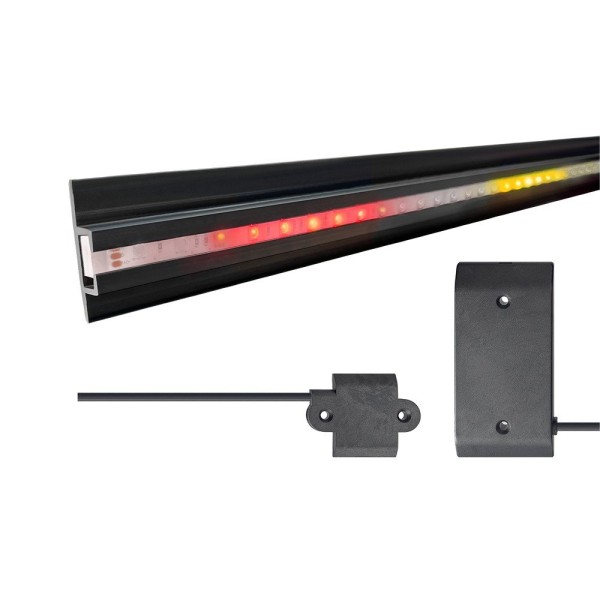

8' Miller Edge Phoenix LED Alert Strip for Sectional Doors

Stop guessing if that sectional door is safe to approach - the Miller Edge Phoenix LED Alert Strip broadcasts the answer in brilliant color. This wireless 8-foot safety light bar mounts in minutes and uses smart motion sensing to trigger its intuitive light show: red/yellow scanning means "door in motion," solid green means "all clear," and solid red means "door secured." The rechargeable lithium battery delivers up to 60 hours of runtime, while the inductive charging pad eliminates cord management headaches. Built tough with IP68-rated LED housing and NEMA 4 power enclosures, it thrives in the harshest industrial environments from freezing warehouses to sweltering truck bays.

Specifications:

• Brightness: Red = 80 lumens/m, Green = 220 lumens/m
• Signaling: Red/yellow scanner pattern: Opening
• Solid green Appox. 6 secs: Open
• Red scanner pattern: Closing
• Solid red Appox. 6 secs: Closed
• Lifespan: 30,000 hours
• Runtime: Up to 60 hours of runtime or Appox. 100 door cycles per charge
• Activation: Motion via accelerometer
• Operating Temperature: Charge: 32° to 113°F (0° to 45°C), Discharge: -4° to 140°C (-20° to 60°C)
• Agency Approvals: FCC
• Power Source: Receiver: 3.7V 800 mAh lithium-ion battery
• Transmitter Power Supply: Input: 100-240VAC 50/60 Hz, Output: 5VDC 1.5A
• Charging: Inductive; full charge in 6-8 hours
• Battery Charge Current: 100 mA nominal
• Power Output (TX): 5V, 1500mA
• Dimensions: LED Strip/Mounting Channel: 8-ft. (2.44 m)
• Power RX & TX Enclosures: 1-13/16 W x 5-3/4 H x 1-3/4 D in. (46 x 146 x 44 mm)
• LED Strip: 48-in.
• Power RX g Receiver: 19.5-in.
• Transmitter g Power TX: 18-in.
• Power TX g Power Supply: 55.5-in.
• LED Strip: UV protected silicone sheath
• Mounting Channels: High density rigid PVC
• Charging Pads: Mounting brackets
• LED Light Strip Enclosure: IP68
• Power RX & TX Enclosures: NEMA 4

• Mounting:

• LED Light Strip: Universal mounting channels
• Charging Pads: Mounting brackets
