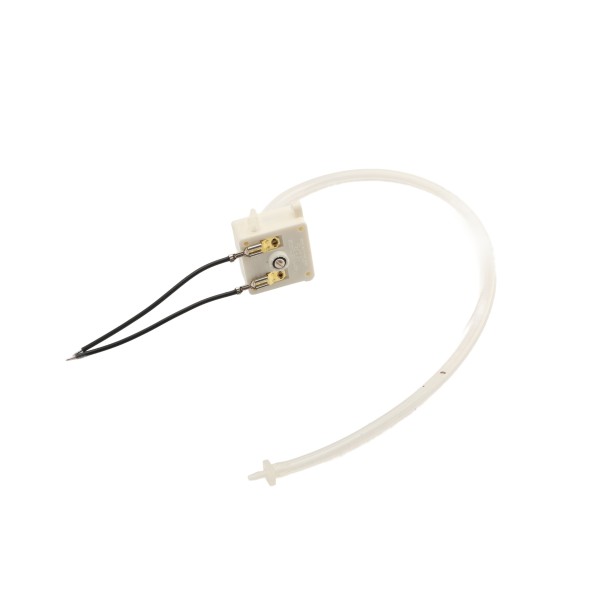

Miller Edge Air Wave Switch Only - No Enclosure - AW 10

Details

Miller Edge Air Wave Switch Only - No Enclosure - AW 10

The AW10 switch works with an air pressure wave which is led to a diaphragm contact, via a hose or pipe. This contact converts the negative or positive pressure wave into an electrical contact and pulse. The contact is of short duration due to the fact that the over pressure escapes through a valve opening. Its range extends to doors up to 60', allowing it to function in a range of industrial applications.

Features:

• Works With Air Pressure Wave
• Works With Doors Up to 60' In Length
• Easily Adjustable Sensitivity
• Release Valve For Pressure And Temperature Compensation

Specifications:

• Configuration: 2-Wire
• Max Switch Frequency: 25/second
• Contact Material: Silver Plated
• Normally Open Or Normally Closed
• Dimensions: 1.25" (H) X 1.20" (W) X 1.73" (D)
• Ambient Temperature Range: 49°F to +180°F
• Max. Pneumatic Load: 2,000mm (78.7") Water Column
• Sensitivity: 2mm to 500mm (.078" to 19.7") Water Column
