Miller Edge MC22 Monitored Standard Extra-Sensitive Electric Edge

Miller Edge MC22 Monitored Standard Extra-Sensitive Electric Edge
$20.43

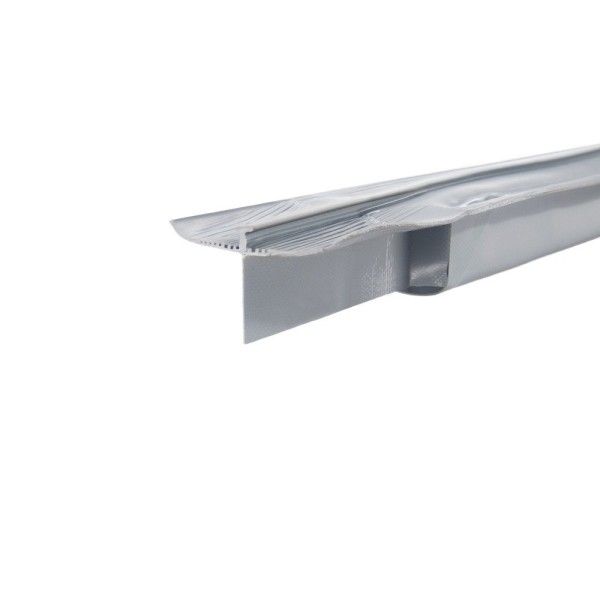

When touched lightly or at an angle, the MC22 will send an immediate electrical signal to your controls to stop, and/or reverse operations. It is completely flexible and will contour curved surfaces.

* Required Fields

$20.43

Details

The MC22 pressure sensitive electric edge is custom manufactured to your exact specifications for length, width, height and sensitivity. When touched lightly or at an angle, the MC22 will send an immediate electrical signal to your controls to stop, and/or reverse operations. It is completely flexible and will contour curved surfaces. The MC style sensing edge is extremely versatile. Contact us with your specifications and we will design the best sensing edge for your application.

Features

  • Extra-sensitive (MC22XS)
  • 4-wire configuration
  • Pneumatic (MCP22) Air-Wave (MCAW
  • 4-wire control panel (MFSC-100)
  • 4-wire intrinsically-safe control panel (FSIS-25-4)

Specifications

  • Color: Grey, Yellow, or Black; Top is standard Gray Color
  • Length: Per spec to nearest 1/4”,
  • Sensitivity: 4 psi standard
  • Lead Wire: 2 ft. SJTO 18 gauge - standard
  • Wire Outlet Location: Specify  right hand, left  hand.
  • Electrical Requirements: Max. 24 volts 1/2 amp AC or DC power
  • Electrical Diagram: 2-wire, N.O. configuration
  • Contact Element: Alumaglas®
  • Cover Material: Heavy duty reinforced PVC and Extruded PVC
  • Temperature Range: -30ºF to +155ºF

Installation

Remove edge from shipping container and lay out flat and straight. Close air valve. Slide edge into accepting channel and wire to operator.

Care of the MC22

Minimal care is required for the MC22 since it is manufactured with only the most durable materials and the highest quality control standards. However, sensing edges should be examined regularly for cuts or punctures which could damage internal components. Also check wiring to be sure connections are secure.

Monitored Sensing Edge Designator
2 Wire Edge Designator Designator Description Operator Manufacturer Outlet Wire Color Code
T1 8.2K Ohm Resistor Typically European Use Green
T2 10K Ohm Resistor Cornell / US Gear Blue
    LiftMaster / Chamberlain
    Linear
    Manaras
    Micanan
    Raynor
    VE Power Door
    Cookson
    Lawrence
T3 Diode Capacitor Overhead Door (Only) Red
T4 Capacitor Linear (Transmitter) White
T5 6.8K Ohm Resistor Custom Applications Orange
T6 270K Ohm Resistor LiftMaster CPS Board Violet
4 Wire Edge Designator N/A LiftMaster None

Additional Information

SKU MC22-MON-STD
Product Edge
Cover Color Black, Yellow, Gray
Post Type Fits Any Shape
Edge Type Standard
Edge Installation Type Slide-In Style
Monitored/Non-Monitored Monitored
Manufacturer Miller Edge, Inc.

Miller Edge MC22 Monitored Standard Extra-Sensitive Electric Edge
