Miller Edge ME110 Non-Monitored Gate Sensing Edge

Details

Miller Edge ME110 Non-Monitored Gate Sensing Edge

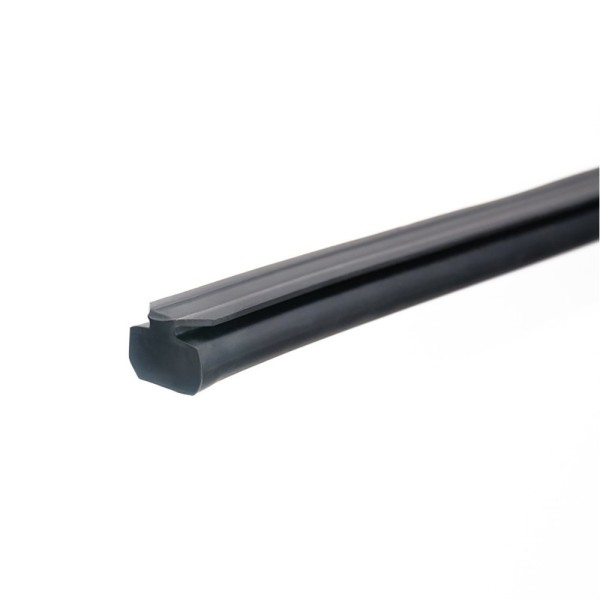

Miller Edge ME110 Black Non-Monitored Sensing Edge

This pressure sensitive electric sensing edge can be adapted to suit a wide variety of applications. It is manufactured to user specifications for length, sensitivity and outlet location. When touch activated, the ME110 sends an immediate signal to stop, and/or reverse operations, depending upon your particular application. Multiple mounting channel designs allow for easy installation on nearly any surface.

The ME110 sensing edge is perfectly designed for use on barrier gate arms. When used with a mounting channel, this ME110 slide-in style edge easily attaches to the gate arm.

Specifications

• Dimensions: 7/8" wide x 3/4" tall
• Color: Black
• Length: 1 ft - 40 ft
• Wire Outlet Location: Right side, Left side or End
• Standard 24" lead wire
• Electrical Diagram: 2 wire N.O. configuration
• Contact Element: Alumaglas®
• Made from flexible PVC
• Rigid PVC mounting channel
• Temperature Range: -30°F to +155°F

Installation

Place appropriate ME110 mounting channel in desired location. Drill 1/8" holes through channel and into mounting surface every 24". Attach channel to surface with screws. Slide ME110 sensing edge into channel and wire to controls.

Note: Use a maximum 24 volt, 1/2 amp AC/DC power. Overload can cause damage. For detailed installation and wiring instructions, contact Miller Edge, Inc.

Care of the ME110

Minimum care is required for the ME110 since it is manufactured with only the most durable materials and the highest quality control standards. However, sensing edges should be examined regularly for cuts or punctures which could damage internal components. Check wiring to be sure connections are secure. When properly maintained, the ME110 offers years of trouble free operation.
