Miller Edge ME111 Monitored Gate Sensing Edge

Manufactured to user specifications for length, sensitivity and outlet location. Great for barrier gates and counter shutters. Features touch sensitive signaling, vertical or horizontal mounting, and a small profile.
Part Number: ME111-MON-STD

* Required Fields


$63.00 each

Price From: $63.00

Details

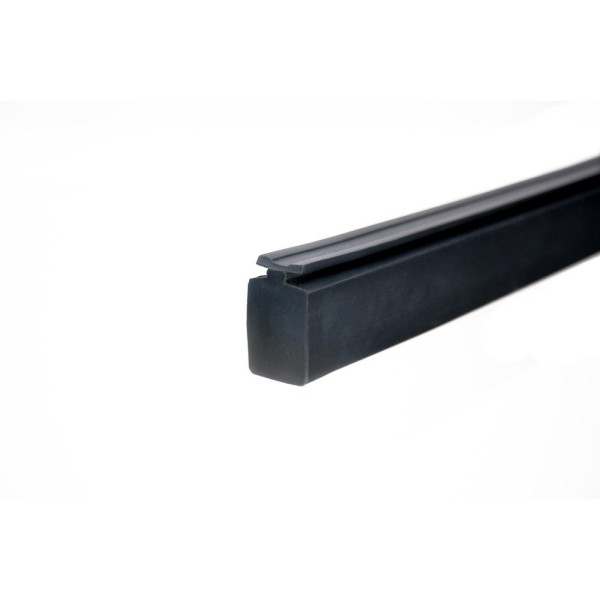

Miller Edge ME111 Monitored Gate Sensing Edge

This pressure sensitive electric edge can be adapted to suit a wide variety of applications. It is manufactured to user specifications for length, sensitivity and outlet location. When touch activated, the ME111 sends an immediate signal to stop and/or reverse operations depending upon your particular application. Multiple mounting channel designs allow for easy installation on nearly any surface.

Great for barrier gates and counter shutters. Features touch sensitive signaling, vertical or horizontal mounting, and a small profile.

Features:

  • Cover Color: Black
  • Length: Per specification to nearest 1/4", max = 40 ft
  • Sensitivity: 8psi - standard
  • Lead Wire: 2 ft. SJO 22 gauge - standard
  • Wire Outlet Location: specify right hand, left hand or end
  • Electrical Requirements: 24 volt, 1/2 amp AC / DC power
  • Wiring Diagram: 2-wire, N.O.
  • Contact Element: Alumaglas®
  • Mounting Channel: High density PVC
  • Material: Extruded flexible PVC
  • Temperature Range: -30°F to +155°F
  • Choose from 2 Wire T1, T2, T3, T4, T5 or T6 or 4 Wire

Installation:

Place appropriate ME111 mounting channel in desired location. Drill 1/8” holes through channel and into mounting surface every 24”. Attach channel to surface with screws. Slide ME111 SensingEdge into channel and wire to controls.

Note: Use a maximum 24 volt, 1/2 amp AC/DC power. Overload can cause damage. For detailed installation and wiring instructions, contact Miller Edge, Inc.

Care of the ME111

Minimum care is required for the ME111 since it is manufactured with only the most durable materials and the highest quality control standards. However sensing edges should be examined regularly for cuts or punctures which could damage internal components. Check wiring to be sure connections are secure. When properly maintained, the ME111 offers years of trouble free operation.

Monitored Sensing Edge Designator
2 Wire Edge Designator Designator Description Operator Manufacturer Outlet Wire Color Code
T1 8.2K Ohm Resistor Typically European Use Green
T2 10K Ohm Resistor Cornell / US Gear Blue
LiftMaster / Chamberlain
Linear
Manaras
Micanan
Raynor
VE Power Door
Cookson
Lawrence
T3 Diode Capacitor Overhead Door (Only) Red
T4 Capacitor Linear (Transmitter) White
T5 6.8K Ohm Resistor Custom Applications Orange
T6 270K Ohm Resistor LiftMaster CPS Board Violet
4 Wire Edge Designator N/A LiftMaster None

SKU ME111-MON-STD
Product Edge
Cover Color Black
Product Type Edges
Post Type Square
Edge Type Standard
Edge Installation Type Slide-In Style
Monitored/Non-Monitored Monitored
Manufacturer Miller Edge, Inc.
