Miller Edge ME112 Monitored Gate Sensing Edge

This sensing edge retrofits easily to 1” to 1 1/4” sectional doors with accepting bottom bar or you can select the compatible mounting channel. Handles commercial sectional doors, gates, and material handling systems with ease. Mounts vertically or horizontally.
Part Number: ME112-MON-STD

* Required Fields


$63.00 each

Price From: $63.00

Details

Miller Edge ME112 Monitored Gate Sensing Edge

Miller Edge ME112 Black Monitored Sensing Edge

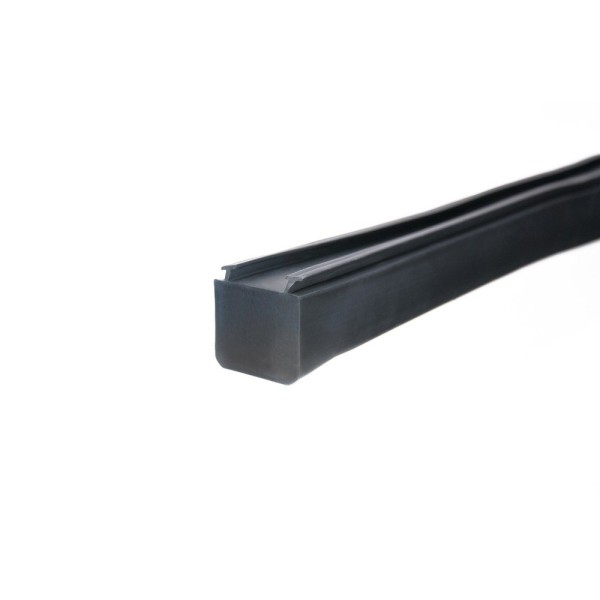

This pressure sensitive electric sensing edge can be adapted to suit a wide variety of applications. It is manufactured to user specifications for length, sensitivity and outlet location. When touch activated, the ME112 sends an immediate signal to stop, and/or reverse operations, depending upon your particular application. This sensing edge retrofits easily to 1" to 1 1/4" sectional doors with accepting bottom bar or you can select the compatible mounting channel.

The ME112 sensing edge is perfectly designed for use on commercial sectional doors, gates or material handling systems.

Specifications:

  • Dimensions: 1 5/16" wide x 1 1/2" tall
  • Cover Color: Black
  • Length: 1 ft - 40 ft
  • Wire Outlet Location: Right side, Left side or End
  • Standard 24" lead wire
  • Electrical Diagram: 2 wire N.O. configuration
  • Contact Element: Alumaglas®
  • Made from extruded flexible PVC
  • High - Density PVC mounting channel
  • Temperature Range: -30°F to +155°F

Installation:

Place appropriate ME112 mounting channel in desired location. Drill 1/8" holes through channel and into mounting surface every 24". Attach channel to surface with screws. Slide ME112 sensing edge into channel and wire to controls.

Note: For safe operation, use a maximum 24 volt, 1/2 amp AC or DC power. For detailed installation and wiring instructions, contact Miller Edge, Inc.

Care of the ME112

Minimum care is required for the ME112 since it is manufactured with only the most durable materials and the highest quality control standards. However, sensing edges should be examined regularly for cuts or punctures which could damage internal components. Check wiring to be sure connections are secure. When properly maintained, the ME112 offers years of trouble free operation.

Monitored Sensing Edge Designator
2 Wire Edge Designator Designator Description Operator Manufacturer Outlet Wire Color Code
T1 8.2K Ohm Resistor Typically European Use Green
T2 10K Ohm Resistor Cornell / US Gear Blue
LiftMaster / Chamberlain
Linear
Manaras
Micanan
Raynor
VE Power Door
Cookson
Lawrence
T3 Diode Capacitor Overhead Door (Only) Red
T4 Capacitor Linear (Transmitter) White
T5 6.8K Ohm Resistor Custom Applications Orange
T6 270K Ohm Resistor LiftMaster CPS Board Violet
4 Wire Edge Designator N/A LiftMaster None

Name Miller Edge ME112 Monitored Gate Sensing Edge
SKU ME112-MON-STD
Product Edge
Cover Color Black
Product Type Edges
Post Type Square
Edge Type Standard
Edge Installation Type Slide-In Style
Monitored/Non-Monitored Monitored
Manufacturer Miller Edge, Inc.
Price $63.00
