Miller Edge ME116 Monitored Gate Sensing Edge

Miller Edge ME116 Monitored Gate Sensing Edge
$18.06
When touched lightly, this pressure sensitive electric edge sends an immediate electrical signal to controls to stop and/or reverse operations. The ME116 Sensing Edge has been designed to fit all CHI doors with double track bottom retainers.

* Required Fields

$18.06

Details

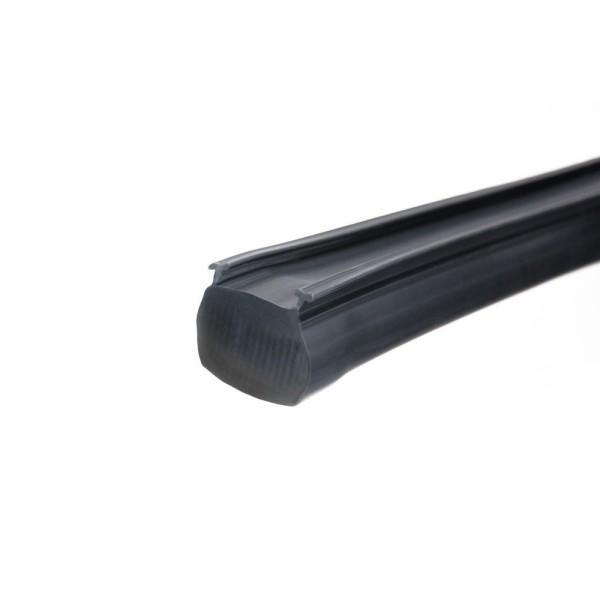

Miller Edge ME116 Black Monitored Sensing Edge

When touched lightly, this pressure sensitive electric edge sends an immediate electrical signal to controls to stop and/or reverse operations. The ME116 Sensing Edge has been designed to fit all CHI doors with double track bottom retainers. With appropriate mounting channel, this edge will fit nearly all doors from 1 1/2" to 2" thick. The ME116 is resistant to flame, water, and most common greases and oils.

The ME116 sensing edge is designed to be used specifically with CHI Sectional Door Channels.

Specifications

  • Dimensions: 1 1/2" wide x 1 1/2" tall
  • Cover Color: Black
  • Length: 1 ft - 40 ft
  • Wire Outlet Location: Right side, Left side or Universal
  • Standard 24" lead wire
  • Electrical Diagram: 2 wire N.O. configuration
  • Contact Element: Alumaglas®
  • Made from extruded flexible PVC
  • CHI mounting channel
  • Temperature Range: -30°F to +155°F
  • Choose from 2 Wire T1, T2, T3, T4, T5 or T6 or 4 Wire

Installation

Slide ME116 Sensing Edge into existing CHI mounting channel and wire per specifications.

Note: For safe operation, use a maximum 24 volt, 1/2 amp AC or DC power. For detailed installation and wiring instructions, contact Miller Edge, Inc.

Care of the ME116

Minimum care is required for the ME116 since it is manufactured with only the most durable materials and the highest quality control standards. However, sensing edges should be examined regularly for cuts or punctures which could damage internal components. Check wiring to be sure connections are secure. When properly maintained, the ME116 offers years of trouble free operation.

Monitored Sensing Edge Designator
2 Wire Edge Designator Designator Description Operator Manufacturer Outlet Wire Color Code
T1 8.2K Ohm Resistor Typically European Use Green
T2 10K Ohm Resistor Cornell / US Gear Blue
    LiftMaster / Chamberlain
    Linear
    Manaras
    Micanan
    Raynor
    VE Power Door
    Cookson
    Lawrence
T3 Diode Capacitor Overhead Door (Only) Red
T4 Capacitor Linear (Transmitter) White
T5 6.8K Ohm Resistor Custom Applications Orange
T6 270K Ohm Resistor LiftMaster CPS Board Violet
4 Wire Edge Designator N/A LiftMaster None



Additional Information

SKU ME116-MON-STD
Product Edge
Cover Color Black
Post Type Square
Edge Type Standard
Edge Installation Type Slide-In Style
Monitored/Non-Monitored Monitored
Manufacturer Miller Edge, Inc.

Miller Edge ME116 Monitored Gate Sensing Edge
