Miller Edge ME117 Non-Monitored Gate Sensing Edge

Details

Miller Edge ME117 Non-Monitored Gate Sensing Edge

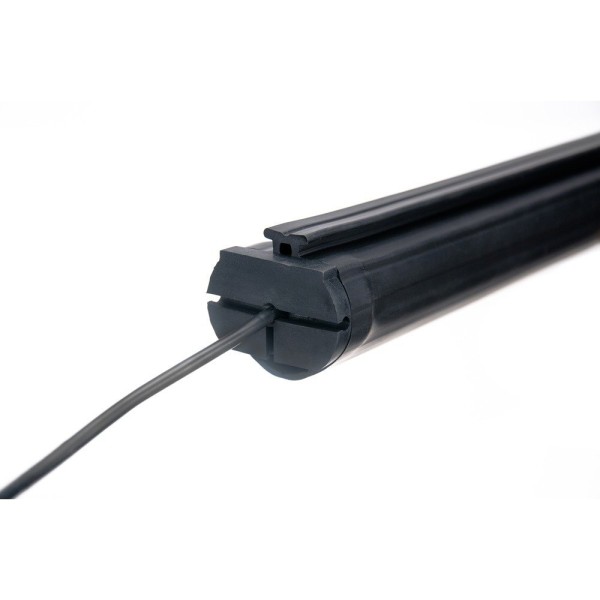

Miller Edge ME117 Black Non-Monitored Sensing Edge

This pressure sensitive electric sensing edge can be adapted to suit a wide variety of applications. It is manufactured to user specifications for length, sensitivity and outlet location. When touch activated, the ME117 sends an immediate signal to stop, and/or reverse operations, depending upon your particular application. With appropriate mounting channel, this edge will fit nearly all doors from 1" to 2" thick. A variety of mounting channels are available for easy installation on machinery applications.

The ME117 sensing edge is perfectly designed for sectional doors, scissor lifts, conveyors and presses.

Specifications:

• Dimensions: 2" wide x 2" tall
• Cover Color: Black
• Length: 1' - 40'
• Wire Outlet Location: Right side, Left side or End
• Standard 24" lead wire
• Electrical Diagram: 2 wire N.O. configuration
• Contact Element: Alumaglas®
• Made from extruded flexible PVC
• Rigid PVC/UPVC mounting channel
• Temperature Range: -30°F to +155°F
• Choose from 2 Wire T1, T2, T3, T4, T5 or T6 or 4 Wire

Installation:

Slide the ME117 Sensing Edge into proper channel. To attach mounting channel, place in desired location. Drill 1/8" holes through channel and into mounting surface. Secure with screws.

Note: For safe operation, use a maximum 24 volt, 1/2 amp AC or DC power. For detailed installation and wiring instructions, contact Miller Edge, Inc.

Care of the ME117

Minimum care is required for the ME117 since it is manufactured with only the most durable materials and the highest quality control standards. However, sensing edges should be examined regularly for cuts or punctures which could damage internal components. Check wiring to be sure connections are secure. When properly maintained, the ME117 offers years of trouble free operation.
