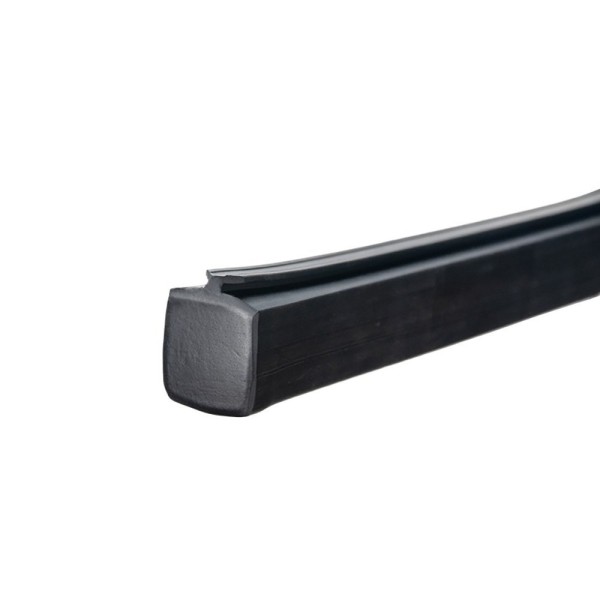

Miller Edge ME120 Non-Monitored Gate Sensing Edge

The small profile of the ME120 sensing edge allows it to suit a wide variety of applications from motorized doors and gates to industrial safeguarding on plant equipment. Mount it horizontally or vertically. Created from the leading name in the sensing edge industry, Miller Edge, Inc.

The ME120 sensing edge is designed for a variety of uses including motorized gates and doors, pinch point protection, lifts, conveyors, machine guarding, elevator doors, and rolling shutters.

Specifications

• Non-Monitored
• Dimensions: 1 1/2" wide x 2" tall
• Cover Color: Black or Yellow
• Length: 1 ft - 40 ft
• Wire Outlet Location: Right side, Left side or End
• Standard 24" lead wire
• Electrical Diagram: 2 wire N.O. configuration
• Contact Element: Alumaglas®
• Made from extruded flexible PVC
• Extruded PVC or Aluminum mounting channel
• Temperature Range: -30°F to +155°F

Installation

Place mounting channel in desired location. Drill 1/8" holes through channel into mounting surface every 24". Attach channel to mounting surface. Slide Sensing Edge into mounting channel channel. If mounting in vertical position, use a screw at the bottom of the channel as a mechanical stop to prevent Sensing Edge from slipping out of position.

Note: For safe operation, use maximum 24 volt AC or DC power.

Care of the ME120

Minimum care is required for the ME120 since it is manufactured with only the most durable materials and the highest quality control standards. However, sensing edges should be examined regularly for cuts or punctures which could damage internal components. Check wiring to be sure connections are secure. When properly maintained, the ME120 offers years of trouble free operation.
