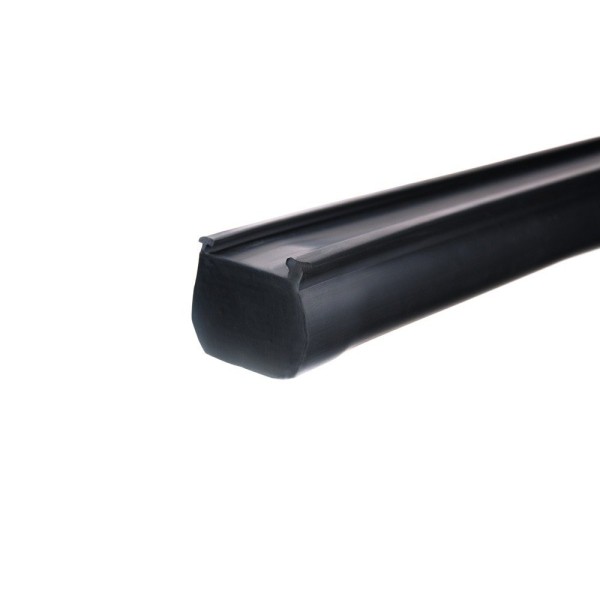

Miller Edge MG123 Non-Monitored Gate Sensing Edge

Miller Edge MG123 Non-Monitored Gate Sensing Edge
$27.35
This pressure sensitive electric edge can be adapted to suit a wide variety of applications. When touch activated, the MG123 sends an immediate electrical signal to controls to stop and/or reverse operations.

* Required Fields

$27.35

Details

Miller Edge MG123 Non-Monitored Sensing Edge

This pressure sensitive electric sensing edge can be adapted to suit a wide variety of applications. It is manufactured to user specifications for length and outlet location. When touch activated, the MG123 sends an immediate signal to stop, and/or reverse operations. The MG123 Sensing Edge has been designed to fit most sectional doors and is custom manufactured to your required length.

The MG123 sensing edge is great for sliding gates, sectional doors, scissor lifts, conveyors and presses.

Specifications

  • Dimensions: 2" W x 1 1/2" H
  • Cover Color: Black
  • Length: 1 ft - 40 ft
  • Wire Outlet Location: Right Side, Left Side, End or Universal
  • Standard 24" Lead Wire
  • Electrical Maximum: 24V AC/DC, 1/2 amp/li>
  • Contact Element: Alumaglas®
  • Made From Extruded Flexible PVC
  • High Density PVC mounting channel
  • Temperature Range: -30°F to +155°F
  • Warranty: 1 Year

Installation

Slide the MG123 Sensing Edge into proper channel. To attach mounting channel, place in desired location. Drill 1/8" holes through channel and into mounting surface. Secure with screws.

Note: For safe operation, use a maximum 24 volt, 1/2 amp AC or DC power. For detailed installation and wiring instructions, contact Miller Edge, Inc.

Care of the MG123

Minimum care is required for the MG123 since it is manufactured with only the most durable materials and the highest quality control standards. However, sensing edges should be examined regularly for cuts or punctures which could damage internal components. Check wiring to be sure connections are secure. When properly maintained, the MG123 offers years of trouble free operation.



Additional Information

SKU MG123-NONMON-STD
Product Edge
Cover Color Black
Post Type Square
Edge Type Standard
Edge Installation Type Slide-In Style
Monitored/Non-Monitored Non-Monitored
Manufacturer Miller Edge, Inc.
