Miller Edge MGS20 Monitored Sensing Edge for 2" Square Gate Posts
Details
Miller Edge MGS20 Monitored Sensing Edge for 2" Square Gate Posts

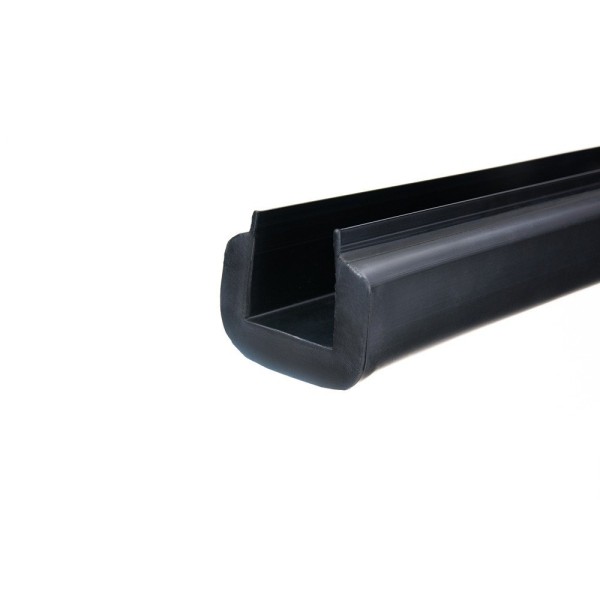

Miller Edge MGS20 Monitored Sensing Edge
Designed specifically for easy installation on standard 2" square frames, the MGS20 offers 3-sided activation for an added measure of protection. When touched, this electrically activated edge sensor immediately signals the gate operator to stop and reverse. The sleek design will not detract from the appearance of the gate.
The MGS20 sensing edge is perfectly designed for slide gates, swing gates and bi-parting gates.
Specifications
- Dimensions: 3 1/4" wide x 2 5/8" tall
- Color: Black or Yellow
- Length: 1 ft - 40 ft
- Wire Outlet Location: Right side, Left side or Universal
- Standard 24" lead wire
- Electrical Diagram: 2 wire N.O. configuration
- Contact Element: Alumaglas®
- Made from rigid extruded PVC
- Flexible PVC mounting channel
- Temperature Range: -30°F to +155°F
- Choose from 2 Wire T1, T2, T3, T4, T5 or T6 or 4 Wire
Installation
The MGS20 was designed to minimize installation time while offering customers the three sided protection for the leading edge of the gate. These edge sensors simply clip on to the 2" frame. The rigid base extends beyond the sensitized portion of the edge sensor to form mounting flanges. To mount, drill 1/8" holes through the mounting flanges and into the gate frame every 24 inches. Permanently attach with #10 screws. Run wire to the gate operator or to wireless transmitter, and attach to safety reverse terminals per the gate operator installation manual. Test the edge sensor and inform the property owner of their obligation to regularly test.
Note: For safe operation, use maximum 24 volt AC or DC power. For detailed instructions, contact Miller Edge, Inc.
Care of the MGS20
Minimum care is required for the MGS20 since it is manufactured with only the most durable materials and the highest quality control standards. However, sensing edges should be examined regularly for cuts or punctures which could damage internal components. Check wiring to be sure connections are secure. When properly maintained, the MGS20 offers years of trouble free operation.
| Monitored Sensing Edge Designator | |||
| 2 Wire Edge Designator | Designator Description | Operator Manufacturer | Outlet Wire Color Code |
| T1 | 8.2K Ohm Resistor | Typically European Use | Green |
| T2 | 10K Ohm Resistor | Cornell / US Gear | Blue |
| LiftMaster / Chamberlain | |||
| Linear | |||
| Manaras | |||
| Micanan | |||
| Raynor | |||
| VE Power Door | |||
| Cookson | |||
| Lawrence | |||
| T3 | Diode Capacitor | Overhead Door (Only) | Red |
| T4 | Capacitor | Linear (Transmitter) | White |
| T5 | 6.8K Ohm Resistor | Custom Applications | Orange |
| T6 | 270K Ohm Resistor | LiftMaster CPS Board | Violet |
| 4 Wire Edge Designator | N/A | LiftMaster | None |
| SKU | MGS20-MON-STD |
|---|---|
| Material | Flexible PVC |
| Length | Custom |
| Input Voltage | 24 DC, 24 AC |
| Cover Color | Black |
| Product Type | Edges |
| Edge Type | Standard |
| Edge Installation Type | Direct Mount |
| Monitored/Non-Monitored | Monitored |
| Manufacturer | Miller Edge, Inc. |
