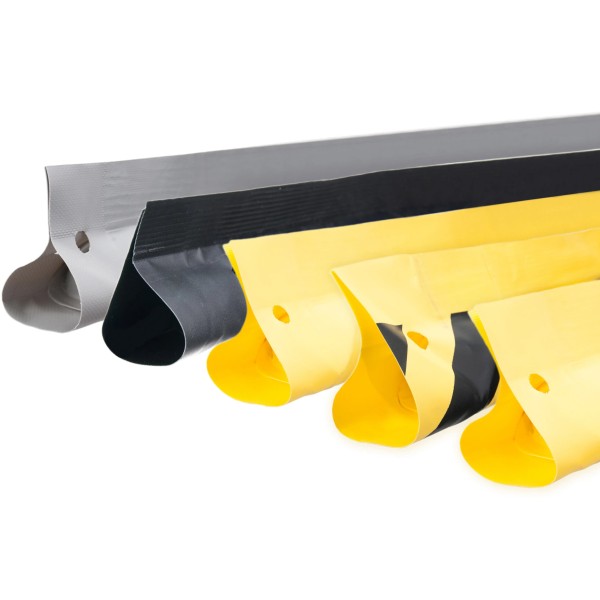

Miller Edge MT21 Monitored Armored Door Electric Edge

The Miller Edge MT21 Monitored Electric Edge is a rugged, touch-sensitive signaling device designed to detect contact and trigger a stop or reverse function in commercial rolling doors and material handling systems. This model is equipped with a Armored durable vinyl jacket and configured for monitored operation using 2-wire, 10K/8.2K resistor, diode-capacitor, or 4-wire setups, making it fully compatible with UL 325-compliant door operators. The MT21 features a patented Alumaglas contact element for consistent performance, along with a flexible PVC body that conforms to floor irregularities to maintain seal integrity.

The MT21 is custom-made to your specifications, including length and wire outlet location (left, right, or universal). Its sealed construction prevents dust and debris intrusion and includes trim-to-fit end flaps for a tight fit. This model is ideal for industrial applications requiring enhanced safety and integration into monitored systems.

Key Features

• Monitored electric edge for rolling and fire doors
• Armored reinforced vinyl jacket in gray or black
• Flexible and sealed design conforms to uneven surfaces
• UL 325 Recognized Component
• Custom length and outlet configuration

Includes

• MT21 Monitored Electric Edge (custom cut)
• 2 ft. 18-gauge SJTO lead wire
• Trim-to-fit 5 - 6 in. end flaps

Specifications

• Dimensions: 2"W x 1"H
• Sensitivity: 4 - 8 lbf (nominal)
• Voltage: Max 24V AC/DC, 1/2 amp
• Electrical Configuration: Normally open
• Maximum Length: 150 ft. (electric)
• Exterior: Reinforced PVC
• Contact: Alumaglas
• Mounting: Top tab inserts between double-L angle bars
