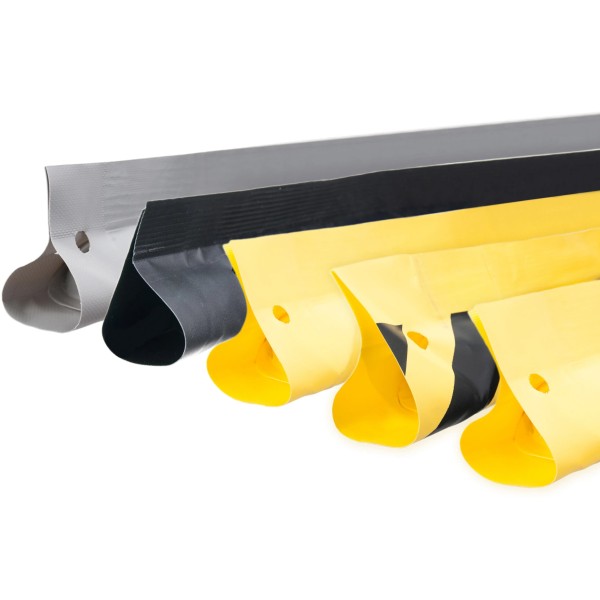

Miller Edge MT21 Non-Monitored Armored Door Electric Edge

Details

Miller Edge MT21 Non-Monitored Armored Door Electric Edge

The MT21 Non-Monitored Electric Edge from Miller Edge is designed for use on rolling steel doors and similar applications that do not require a monitored circuit. This version features the same durable construction as its monitored counterpart but uses a basic 2-wire normally open circuit for simpler integration. The armored black or gray jacket is made from reinforced PVC, providing resistance to physical wear and external elements.

Its slim profile (2" wide by 1" high) allows it to fit armored mounting channels, while the sealed design prevents dust and moisture ingress. The MT21 is easy to install and tailor-made to your specifications, including wire orientation and length, making it a versatile choice for light industrial or commercial use.

Key Features

• Non-monitored sensing edge for basic electric applications
• Flexible PVC housing conforms to uneven ground
• Patented Alumaglas contact switch
• Trim-to-fit end flaps included

Specifications

• Dimensions: 2"W x 1"H
• Voltage: 24V AC/DC, 1/2 amp
• Sensitivity: 4 - 8 lbf
• Maximum Length: 150 ft.
• Jacket: Heavy Duty Reinforced vinyl (gray or black)
