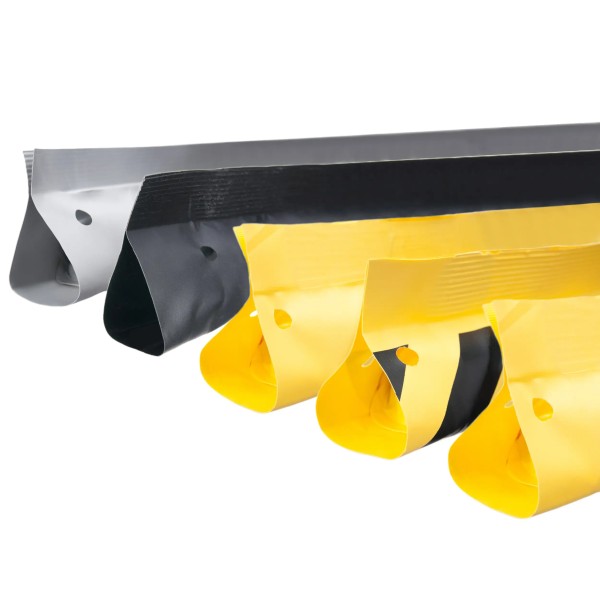

Miller Edge MT22 Monitored Armored Door Electric Edge
Details
Miller Edge MT22 Monitored Armored Door Electric Edge
The Miller Edge MT22 Monitored Armored Door Electric Edge is a 2" x 2" touch-sensitive edge designed for integration with monitored access control systems. Featuring a reinforced vinyl jacket and UL 325-recognized Alumaglas contact core, it offers dependable signaling to stop or reverse door movement upon contact. This model is suited for installation on rolling steel or fire doors and is custom manufactured to specific length and wire outlet requirements.
The MT22 monitored edge supports various monitored configurations, including 2-wire, 4-wire, and resistor-based wiring (10K, 8.2K, diode-capacitor). The durable body flexes to accommodate floor irregularities, while sealed ends keep out dust and debris. Ideal for commercial doors needing UL-compliant monitored edges.
Key Features
- 2" x 2" monitored edge with Alumaglas contact core
- Flexible vinyl jacket conforms to uneven flooring
- Supports multiple monitored configurations
- UL 325 Recognized Component
- Made in the USA with a 1-year warranty
Includes
- Custom-length MT22 monitored edge
- 2 ft. SJTO 18-gauge lead wire
- Trim-to-fit end flaps
Specifications
- Dimensions: 2" x 2"
- Voltage: Max 24V AC/DC, 1/2 amp
- Sensitivity: 4 - 8 lbf nominal
- Material: Heavy-duty reinforced PVC
- Max Length: 150 ft. (electric)
| SKU | MT22-MON-ARMORED |
|---|---|
| Material | Heavy Duty Reinforced PVC |
| Length | Custom |
| Cover Color | Custom |
| Product Type | Edges |
| Edge Type | Standard |
| Edge Installation Type | Direct Mount |
| Monitored/Non-Monitored | Monitored |
| Manufacturer | Miller Edge, Inc. |
