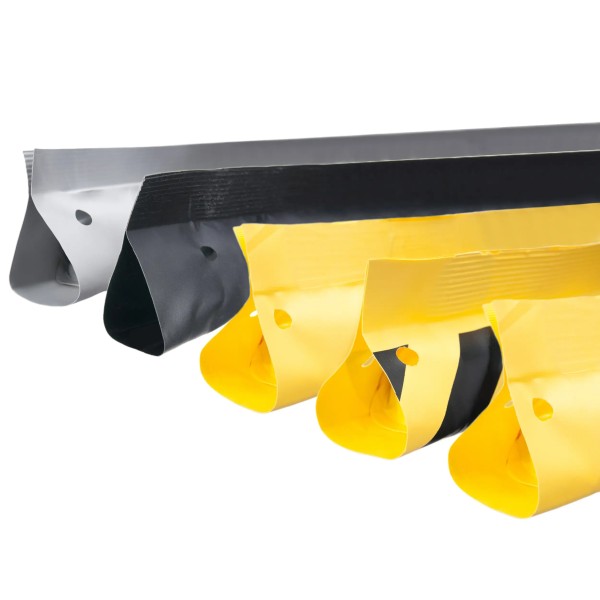

Miller Edge MT22 Monitored XR-5 Yellow Chemical Resistant Electric Edge
Details
Miller Edge MT22 Monitored XR-5 Yellow Chemical Resistant Electric Edge
The Miller Edge MT22 Monitored XR5 Electric Edge combines the safety of a touch-sensitive monitored circuit with the durability of a high-visibility XR5 yellow jacket. Built with a square 2" x 2" profile and a patented Alumaglas contact system, it reliably signals to reverse or stop door motion when activated. This version is especially suited for harsh industrial environments or locations where chemical resistance and visual alerting are essential.
The edge is compatible with a range of monitored wiring configurations including resistor types and 4-wire setups. Its sealed, flexible construction conforms to floor surfaces and protects against dust and moisture. Ideal for fire and rolling door systems requiring chemical resistance and safety certification.
Key Features
- Monitored edge with XR5 yellow chemical-resistant jacket
- Conforms to floor irregularities for tight sealing
- UL 325 Recognized and customizable to exact size
- Patented Alumaglas contact switch
Specifications
- Dimensions: 2" x 2"
- Voltage: Max 24V AC/DC
- Sensitivity: 4 - 8 lbf
- Material: XR5 chemical-resistant jacket
- Wiring: 2-wire, 4-wire, monitored configurations
| SKU | MT22-MON-XR5-YELLOW |
|---|---|
| Material | Chemical Resistant PVC |
| Length | Custom |
| Cover Color | Yellow |
| Product Type | Edges |
| Edge Type | Chemical Resistant |
| Edge Installation Type | Direct Mount |
| Monitored/Non-Monitored | Monitored |
| Manufacturer | Miller Edge, Inc. |
