Miller Edge MT22 Non-Monitored Armored Door Electric Edge
Details
Miller Edge MT22 Non-Monitored Armored Door Electric Edge

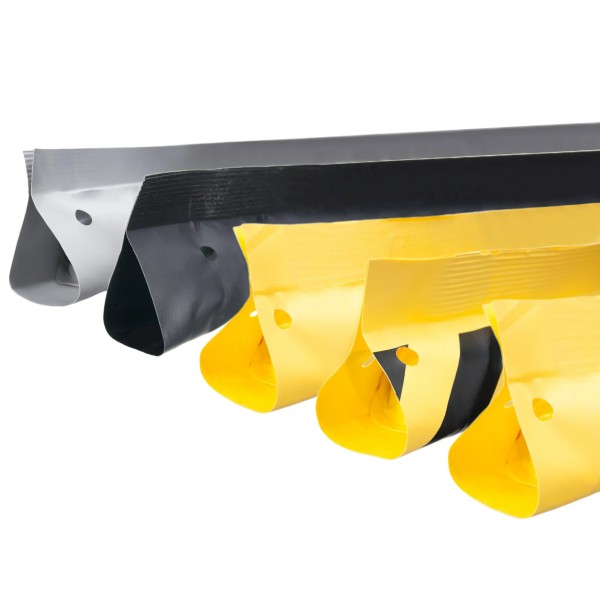

The MT22 Non-Monitored armored Electric Edge is ideal for general-use commercial rolling or fire doors where monitored inputs aren't required. The edge uses a normally open 2-wire configuration and delivers immediate signaling when activated, causing doors to stop or reverse. Its 2" x 2" size is designed for heavier bottom bars and door systems requiring reliable edge contact.
Constructed with heavy-duty reinforced PVC and sealed to block debris and moisture, this edge maintains consistent functionality. The flexible design ensures it contours to floor irregularities, while end flaps allow a customized, flush finish. A trusted solution where basic safety meets rugged durability.
Key Features
- Non-monitored electric edge with armored PVC jacket
- Heavy-duty 2" x 2" format for large door assemblies
- Flexible and trim-ready for precise installation
- UL 325 Recognized Component
Specifications
- Dimensions: 2"W x 2"H
- Electrical: 2-wire normally open circuit
- Voltage: 24V AC/DC max
- Sensitivity: 4 - 8 lbf
- Max Length: 150 ft. (electric)
| SKU | MT22-NONMON-ARMORED |
|---|---|
| Material | Heavy Duty Reinforced PVC |
| Length | Custom |
| Cover Color | Custom |
| Product Type | Edges |
| Edge Type | Standard |
| Edge Installation Type | Direct Mount |
| Monitored/Non-Monitored | Non-Monitored |
| Manufacturer | Miller Edge, Inc. |
