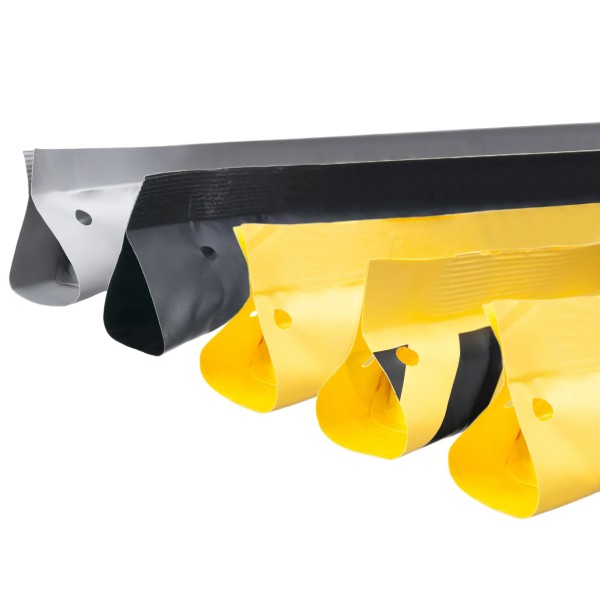

Miller Edge MT22 Non-Monitored XR-5 Yellow Chemical Resistant Electric Edge
Details
Miller Edge MT22 Non-Monitored XR-5 Yellow Chemical Resistant Electric Edge
The MT22 Non-Monitored XR5 Yellow Electric Edge provides tough, chemical-resistant performance in a simple 2-wire configuration. Designed for heavy-duty rolling doors in industrial or corrosive environments, this edge combines flexible performance with a high-visibility XR5 jacket. It delivers immediate signaling to halt or reverse door motion on contact and does not require a monitored safety input.
The MT22 XR5 variant includes a durable 2" x 2" body that conforms to uneven floor surfaces. Trim-to-fit end flaps, Alumaglas contact core, and PVC sealing round out this versatile safety solution. An excellent choice for high-exposure work zones or outdoor installations.
Key Features
- Non-monitored edge with XR5 yellow jacket for chemical resistance
- Ideal for non-monitored commercial door systems
- Flexible structure ensures reliable sealing against flooring
- UL 325 Recognized and customizable
Specifications
- Dimensions: 2" x 2"
- Voltage: Max 24V AC/DC
- Material: XR5 yellow chemical-resistant vinyl
- Configuration: 2-wire normally open
- Sensitivity: 4 - 8 lbf
Prefer to Call? (888) 378-1043
Questions about part number MT22-NONMON-XR5-YELLOW?
Required Fields *
| SKU | MT22-NONMON-XR5-YELLOW |
|---|---|
| Material | Chemical Resistant PVC |
| Length | Custom |
| Cover Color | Yellow |
| Product Type | Edges |
| Edge Type | Chemical Resistant |
| Edge Installation Type | Direct Mount |
| Monitored/Non-Monitored | Non-Monitored |
| Manufacturer | Miller Edge, Inc. |
