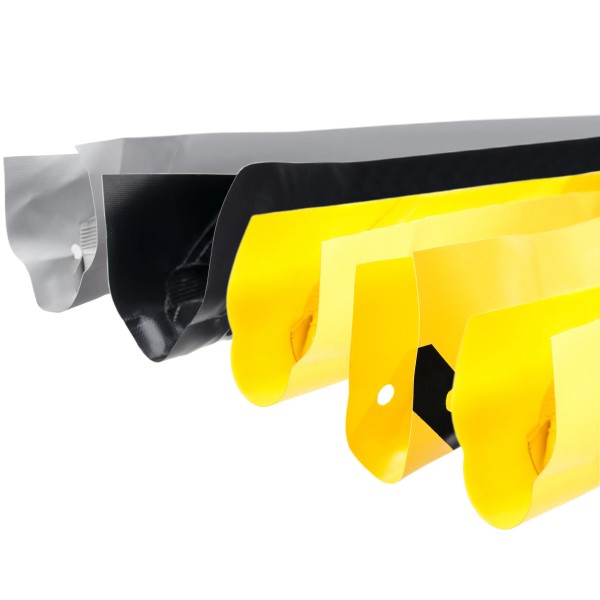

Miller Edge MU21 Monitored Armored Versatile Electric Edge

The Miller Edge MU21 Monitored Armored Electric Edge offers reliable, touch-sensitive protection for commercial sectional doors and material handling equipment. With a 2-inch profile and patented Alumaglas contact element, this monitored sensing edge responds to light contact with a stop or reverse signal to the operator. It mounts directly to the door edge - no channel required - thanks to its versatile top-tab vinyl design that wraps around the edge surface for secure installation.

Compatible with a variety of monitored circuit types including 2-wire, 4-wire, 10K, 8.2K, and diode-capacitor, the MU21 is UL 325 Recognized and manufactured to custom specifications for length and wire exit location. Its sealed vinyl exterior resists dust and moisture, while flexible flaps ensure full sealing even on uneven flooring.

Key Features

• Monitored safety edge with multiple wiring configurations
• Mounts vertically or horizontally - no mounting channel required
• Flexible construction conforms to slight floor variations
• UL 325 Recognized Component
• Made in the USA and backed by a 1-year warranty

Includes

• Custom-length MU21 monitored electric edge
• 2 ft. 18-gauge SJTO lead wire
• Trim-to-fit 5 - 6 inch end flaps

Specifications

• Dimensions: 2"W x 1"H
• Sensitivity: 4 - 8 lbf (nominal)
• Voltage: Max 24V AC/DC, 1/2 amp
• Material: Reinforced PVC (gray, black, yellow, etc.)
• Electrical Configuration: Normally open (monitored)
