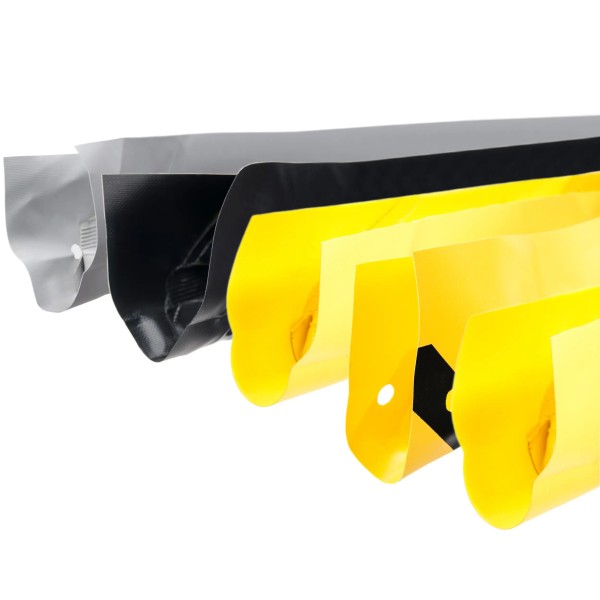

Miller Edge MU21 Non-Monitored Armored Versatile Electric Edge
Details
Miller Edge MU21 Non-Monitored Armored Versatile Electric Edge
The Miller Edge MU21 Non-Monitored Electric Edge is a versatile and easy-to-install safety component designed for general commercial sectional doors and equipment not requiring monitored circuits. The top-tab design allows it to wrap securely around the leading edge without the need for additional mounting hardware. It activates on light contact, sending a signal to stop or reverse the door, helping to protect personnel and equipment.
This edge includes a armored reinforced vinyl jacket, available in custom lengths and wiring orientations. The non-monitored version uses a 2-wire normally open electrical configuration, ideal for simpler safety systems that still demand responsive edge performance.
Key Features
- Non-monitored configuration with 2-wire normally open circuit
- Mounts without hardware; wraps directly to edge
- Flexible and sealed against environmental debris
- UL 325 Recognized Component
Specifications
- Dimensions: 2"W x 1"H
- Voltage: 24V AC/DC max
- Sensitivity: 4 - 8 lbf
- Material: Reinforced PVC (standard colors)
| SKU | MU21-NONMON-ARMORED |
|---|---|
| Material | Heavy Duty Reinforced PVC |
| Length | Custom |
| Cover Color | Custom |
| Product Type | Edges |
| Edge Type | Standard |
| Edge Installation Type | Direct Mount |
| Monitored/Non-Monitored | Non-Monitored |
| Manufacturer | Miller Edge, Inc. |
