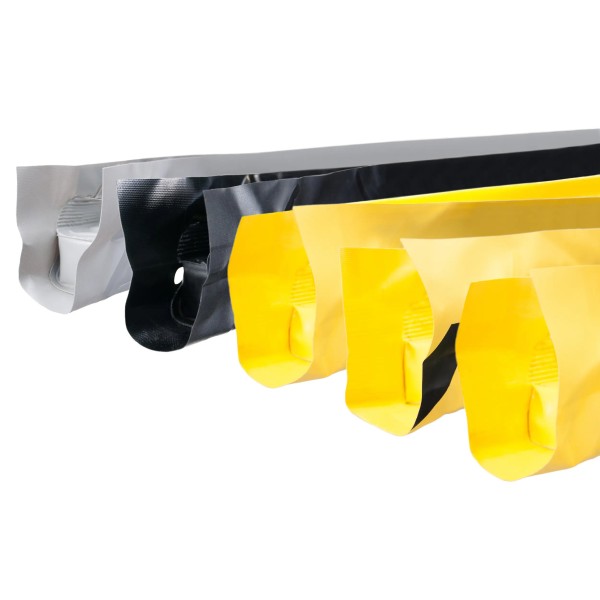

Miller Edge MU22 Monitored Armored Versatile Electric Edge

The Miller Edge MU22 Monitored Electric Edge is a UL 325 Recognized Component designed for 2-inch thick commercial sectional doors and material handling systems. Its touch-sensitive design sends an immediate signal to operator controls to stop or reverse movement when activated. The MU22 mounts directly to the door's edge - vertically or horizontally - without a mounting channel, simplifying installation and maintenance.

Custom-manufactured for length, outlet location, and color, this model includes a rugged PVC exterior and patented Alumaglas contact element. Monitored configurations are supported, including 2-wire, 4-wire, and resistor-based circuits (10K, 8.2K, diode-capacitor). This edge delivers reliable performance in both indoor and outdoor environments, especially when UL compliance is critical.

Key Features

• Monitored electric edge for versatile mounting - no channel required
• Custom length, outlet side, and jacket color available
• Durable sealed construction resists dust and debris
• UL 325 Recognized and CE certified
• Includes patented Alumaglas for fast, reliable response

Specifications

• Dimensions: 2" x 2"
• Material: Reinforced PVC
• Voltage: 24V AC/DC max
• Sensitivity: 4 - 8 lbf (nominal)
• Electrical Configuration: Normally open, monitored options available
• Lead Wire: 2 ft. SJTO 18-gauge
• Max Length: 150 ft. (electric)
