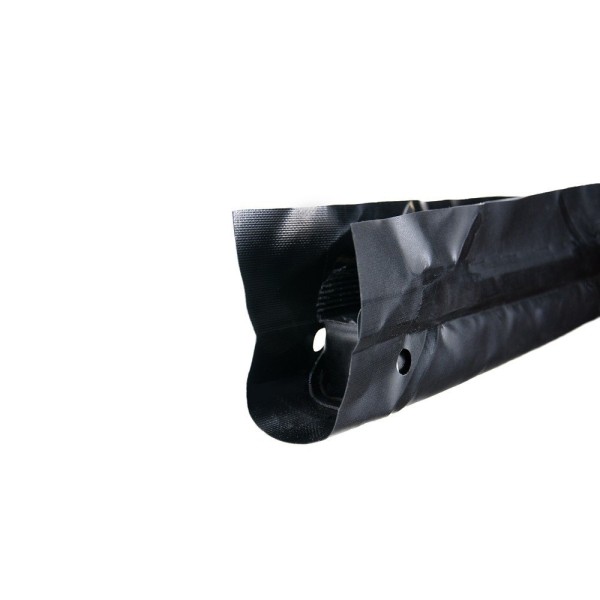

Miller Edge MU22 Monitored Standard Versatile Electric Edge
The MU22 pressure sensitive electric edge is custom manufactured to your exact specifications for length, width, height and sensitivity. When touched lightly or at an angle, the MU22 will send an immediate electrical signal to your controls to stop and/or reverse operations. It is completely flexible and will contour curved surfaces.
The MU style sensing edge is extremely versatile--its profile can be square, rectangular or even angled. Contact us with your specifications and we will design the best sensing edge for your application.
- Color: Gray, yellow, or black
- Length: Per specification to the nearest 1/4”
- Sensitivity: 3psi - standard
- Lead Wire: 24” SJTO 18 gauge - standard
- Wire Outlet Location: specify right hand, left hand or end
- Electrical Requirements: 24 volts, 1/2 amp AC or DC power
- Electrical Diagram: 2-wire, N.O. configuration
- Electrical Contact Element: Alumaglas®
- Cover: Heavy duty reinforced PVC
- Temperature Range: -30ºF to +155ºF
Options
- 4 wire N.O. configuration
- Pneumatic (MUP22) Air-Wave (MUAW22)
- 4-wire control panel (MFSC-100)
- Yellow/Black striped cover material
- 4-wire intrinsically-safe control panel (FSIS-25-4)
Installation
To install remove edge from shipping container and lay out flat and straight. Close air valve. Position edge in desired location and attach with screws through mounting flange at ends and center.Continue to attach edge by securing mounting flange with screws placed 24” apart. Do not place screws below seal line. For detailed installation & wiring instructions, contact Miller Edge, Inc.
Care of the MU22...
Minimal care is required for MU style sensing edges since they are manufactured with only the most durable materials and the highest quality control standards. However, sensing edges should be examined regularly for cuts or punctures which could damage internal components. Also check wiring to be sure connections are secure. When properly maintained, the MU22 offers years of trouble-free operation.
| Monitored Sensing Edge Designator | |||
| 2 Wire Edge Designator | Designator Description | Operator Manufacturer | Outlet Wire Color Code |
| T1 | 8.2K Ohm Resistor | Typically European Use | Green |
| T2 | 10K Ohm Resistor | Cornell / US Gear | Blue |
| LiftMaster / Chamberlain | |||
| Linear | |||
| Manaras | |||
| Micanan | |||
| Raynor | |||
| VE Power Door | |||
| Cookson | |||
| Lawrence | |||
| T3 | Diode Capacitor | Overhead Door (Only) | Red |
| T4 | Capacitor | Linear (Transmitter) | White |
| T5 | 6.8K Ohm Resistor | Custom Applications | Orange |
| T6 | 270K Ohm Resistor | LiftMaster CPS Board | Violet |
| 4 Wire Edge Designator | N/A | LiftMaster | None |
| SKU | MU22-MON-STD |
|---|---|
| Material | Heavy Duty Reinforced PVC |
| Length | Custom |
| Input Voltage | 24 DC, 24 AC |
| Cover Color | Custom |
| Product Type | Edges |
| Edge Type | Standard |
| Edge Installation Type | Direct Mount |
| Monitored/Non-Monitored | Monitored |
| Manufacturer | Miller Edge, Inc. |
