Miller Edge MU22 Non-Monitored Armored Versatile Electric Edge
Details
Miller Edge MU22 Non-Monitored Armored Versatile Electric Edge

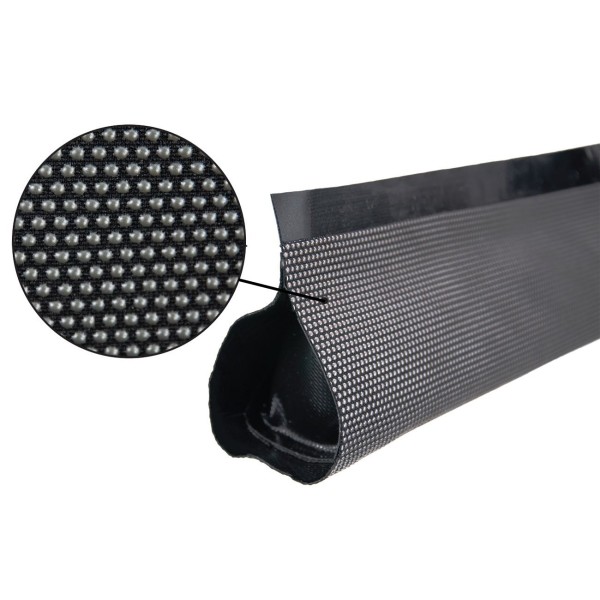

The Miller Edge MU22 Non-Monitored Electric Edge is a versatile, touch-sensitive device for non-monitored access systems. Designed for 2-inch thick commercial doors, it mounts directly to the edge - no channel required - and conforms to minor floor irregularities to provide full contact. The flexible design, paired with a armored reinforced PVC jacket, makes this edge reliable in a wide variety of settings.
It uses a 2-wire normally open configuration and is sealed to protect the internal switch from dust and debris. Manufactured to custom specifications, the MU22 includes trim-to-fit end flaps and supports horizontal or vertical mounting.
Key Features
- Non-monitored 2-wire configuration for simpler systems
- Wrap-around mount - no channel needed

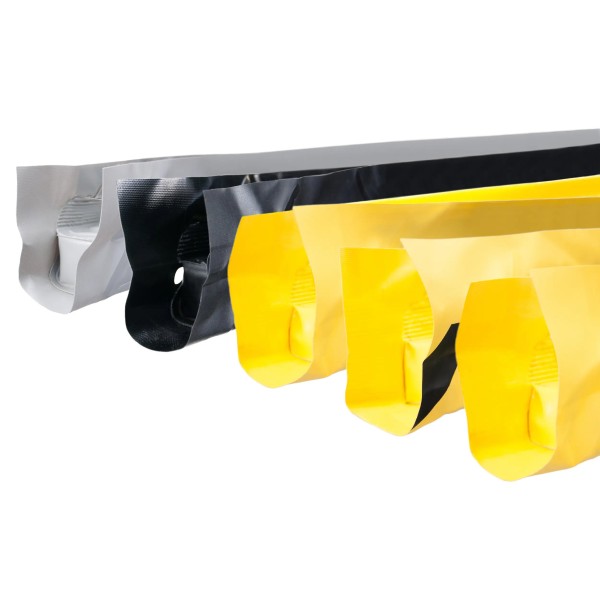

- Customizable length, color, and outlet orientation
- UL 325 Recognized and made in the USA
Specifications
- Dimensions: 2" x 2"
- Voltage: 24V AC/DC
- Sensitivity: 4 - 8 lbf
- Material: Armored Reinforced PVC (gray/black/yellow)
| SKU | MU22-NONMON-ARMORED |
|---|---|
| Material | Heavy Duty Reinforced PVC |
| Length | Custom |
| Cover Color | Custom |
| Product Type | Edges |
| Edge Type | Standard |
| Edge Installation Type | Direct Mount |
| Monitored/Non-Monitored | Non-Monitored |
| Manufacturer | Miller Edge, Inc. |
