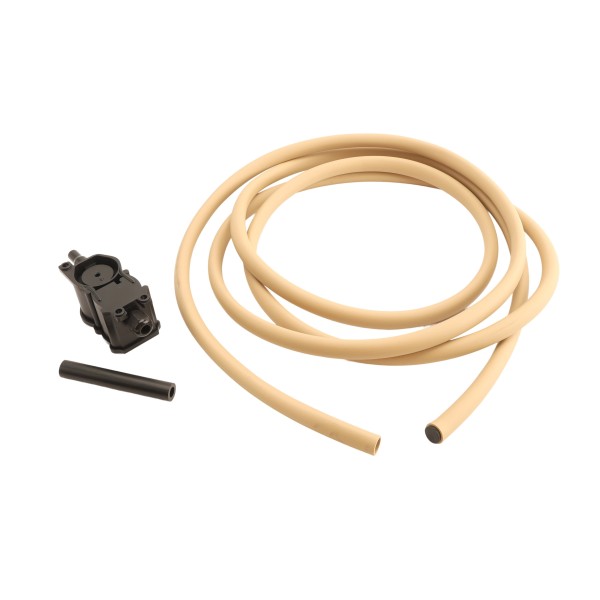

Miller Edge PS20K500-12 12' Pneumatic Kit

The Miller Edge PS20K500-12 12' Pneumatic Kit is a comprehensive package that includes a PS20 switch, tapered connectors, gum rubber hose, end plug and wire nuts.
Part Number: PS20K500-12
$49.55 each
$49.55 each
OR
Quantity Price Each
  1+$49.55
  100+$47.56


Details

Miller Edge PS20K500-12 12' Pneumatic Kit

The Miller Edge PS20K500-12 12' Pneumatic Kit is a comprehensive package that includes a PS20 switch, tapered connectors, gum rubber hose, end plug and wire nuts for installing an air switch system for a door or gate opening. At the heart of the kit is the Miller Edge PS-20A Pneumatic Switch in ABS Enclosure, which is a low-cost alternative to the standard electric sensing edge and works as an effective Sensing Edge when attached to a hose that is inserted into the current weather stripping on most doors. The RAH-500 Rubber Hose provides the proper connection and tapered connectors link all of the kit's elements together, with wire nuts and end plugs to help keep everything working and in order.

Features:

  • Easy to Install
  • Switch Diaphragm Made Of Silicone
  • No Concerns With Compatibility Amongst Parts
  • Comprehensive Kit Includes Everything Needed For Installation

Specifications:

  • Switch Max. Pressure: 20 PS
  • Operating Temp. Range: -20°F To +158°F
  • Switch Max. Contact Load: .5A/220VAC; 1A/48VDC
  • Switch Cover Material - ABS, Weather-Proof Enclosure
  • PS-20A Pneumatic Switch Is Electrical Configuration - 3-Wire SPDT

Specification Sheet

SKU PS20K500-12
Product Airswitch
Input Voltage 48 DC, 220/230/240 AC (60 Hz, 1 Phase)
Usage Interior
Product Type Air Switches
Wire Type 3 Wire
Manufacturer Miller Edge, Inc.
