Miller Edge RBand Monitored Sensing Edge Transmitter/Receiver System - RB-G-K10
Details
Miller Edge RBand Monitored Sensing Edge Transmitter/Receiver System - RB-G-K10
The Miller Edge RBand RB-G-K10 is a wireless monitored transmitter/receiver kit for automated gate systems. It works by checking the presence and function of a T2 (10k) monitored safety edge for gate openers and transmits a wireless monitored signal to the operator controls. This Miller Edge sensing edge transmitter & receiver provides convenient edge sensing installation without the need for physical wiring. The RBand Receiver allows for flexible configuration as it can be paired with up to 6 Transmitters on 2 channels. The transmitter is built for outdoor use, and can withstand the demands of harsh environments. This wireless remote sensing system is UL325 compliant for entrapment protection devices for gate operators.
Please note: The system requires the following in order to be used properly. These items are not included with the RBand Monitored Sensing System: Miller Edge 10K (T2/blue band) Sensing Edge, Coaxial cable for exterior mounted antenna, Coaxial bulkhead adapter, female/female
System Includes:
- RBand Edge Transmitter (RB-TX10)
- RBand Gate Edge Receiver (RB-G-RX10)
- Receiver Antenna
- (2) 3.6V AA lithium batteries*
- (4) #6 pan head transmitter mounting screws
Features:
- 2 Channel Receiver Compatible With Up To 6 Total Wireless Transmitters
- On-board Diagnostics For Easy Setup/Troubleshooting
- Bi-Directional Link Improves Immunity To RF Interface
- Transmitter Built To Endure Rugged Outdoor Environments
- 2016 UL 325 Recognized Component
- 2 year warranty
Specifications:
- TX Dimensions: 1.80" L x 4.78" W x 1.75" H
- TX Weight: 4.5 oz.
- TX Enclosure Material: Polycarbonate
- TX Rating: NEMA4
- RX Dimensions: 4.12" L x 3.65" W x 1.65" H
- RX Weight: 5.25 oz
- RX Enclosure Material: Steel
Mechanical Specifications:
- Operating Temperature: -40 degrees F to 140 degrees F
- Frequency: 916 MHz
- Operating Range: 50' nominal; 100' under optimal conditions
- TX Power Source: 2 AA, 3.6 V Lithium
- TX Battery Life: 2-year expectancy
- TX Input: 10K monitored edge
- RX Power Source: 12-24 VAC/DC nominal, 100 mA maximum
- RX Outputs: 10K, N.C.
Frequently Asked Questions:
Q: What batteries should I use in the Miller Edge RBand Transmitter?
A: (2) 3.6V AA Lithium Batteries. They are included with purchase but replacements can be found at your local electronics store.
Q: Can I connect both edges on my gate?
A: Yes, and you can actually connect even more. The RBand receiver supports pairing with up to six transmitters, three on each channel. Each sensing edge will require its own dedicated transmitter.
Q: Is RBand Receiver suitable for outdoor use?

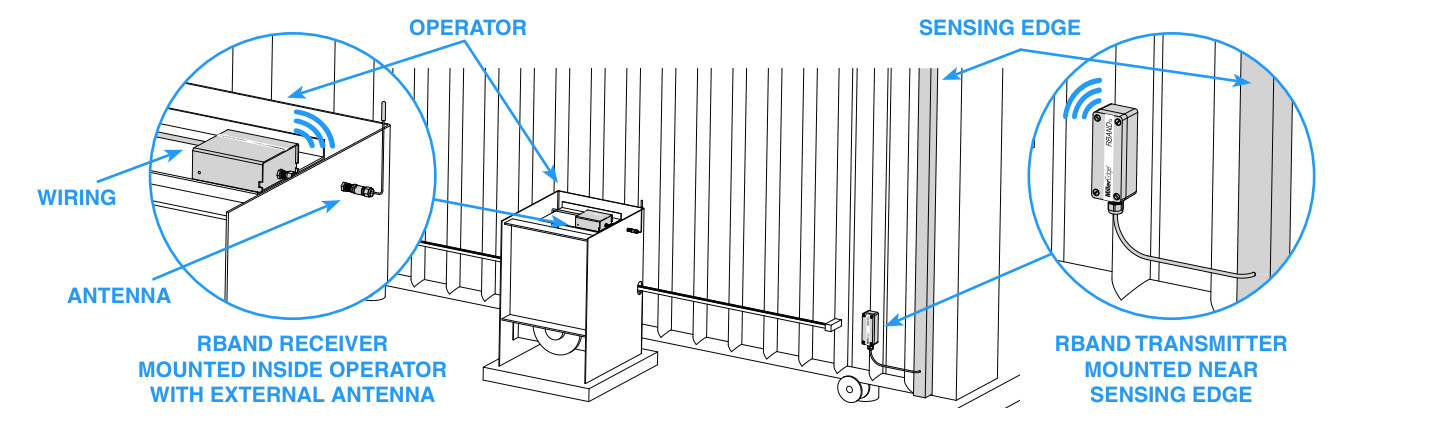

A: No, although the RBand transmitter comes in a NEMA4-rated enclosure, the receiver is meant to be installed inside the operator's housing. To ensure a clear line of sight with the transmitter, you might need to use an antenna extension cable.
Q: Does RBand have an audible or visual external low battery alarm?
A: Yes, the receiver emits a beep to indicate that the transmitter's batteries are running low.
Q: What gate operators will the Miller Edge RBand work with?
A: The Miller Edge RBand is compatible with almost all commercial gate operators that accept a monitored 10k or normally closed (N.C.) input for entrapment protection. However, it's important to confirm with the operator's manufacturer that the RBand is approved for use with their system.
SKU | RB-G-K10 |
---|---|
Installation Guide | Download PDF file |
Frequently Asked Questions | Download PDF file |
Specification Sheet | Download PDF file |
Product | Receiver |
Input Voltage | 12 DC, 12 AC, 24 DC, 24 AC |
Manufacturer | Miller Edge, Inc. |
Product Type | Wireless Edges |
