Details

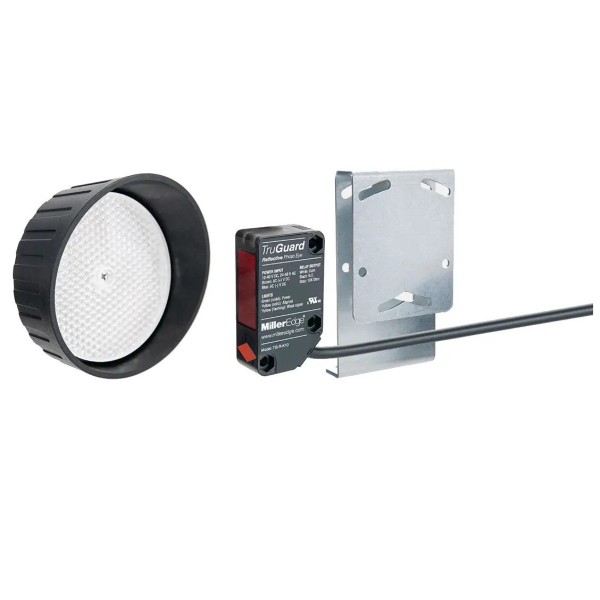

Miller Edge TruGuard Normally Open Monitored Reflective Photo Eye - TG-R-NO-K10

Specifications:

• Operating Range: 6-30 ft. (2-9 m)
• Number of Elements: 1 element
• Aperture Angle: 3°
• Reflector: Corner cube
• Operating Temperature: -13°F to +141°F, (-25°C to +55°C)
• Agency Approvals: UL 325 Recognized Component (10K, pulsed, and N.C. models only)
• Power Source: 12-40 volts DC, 24-48 volts AC
• Current Consumption: 40 mA
• Relay Rating: 2 A @ 40 volts AC/DC
• Output: 2 channel N.O./N.C. (selectable)
• Dimensions: EM/RX: 0.75 W x 2.5 H x 1.38 D in. (19 x 64 x 35 mm) Bracket: 1.75 W x 4 H x 2.38 D in. (44 x 102 x 60 mm)
• Housing Material: EM/RX: Polycarbonate, PMMA lens Bracket: Galvanized steel
• Degree of Protection: IP67
