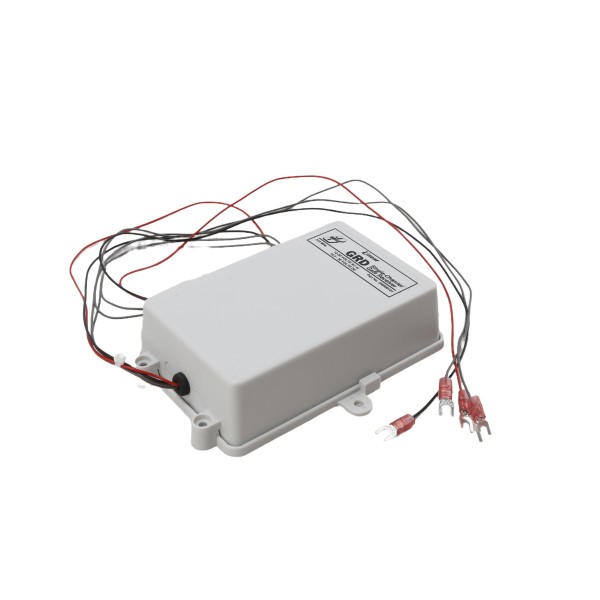

MMTC Single-Channel Auto-Sensing Gate Opener Receiver with Antenna - GRD
Details
MMTC Single-Channel Auto-Sensing Gate Opener Receiver with Antenna - GRD
The GRD is a single-channel auto-sensing automatic gate receiver for gate opener systems with remote antennas. This receiver can operate a gate or sensor. It uses Delta-3 radio formatting with 256 possible codes, set by a dipswitch. This receiver can operate from 12-30 volts AC or 10.5-30 volts DC and are normally powered from the gate operator. Its relay contact is rated at 5 amps @ 30 volts AC/DC and uses a frequency of 310 MHz. Includes a 9-inch local antenna, three feet of 75-ohm coaxial cable, and a bulkhead connector for locating the antenna outside the gate operator enclosure.
Specifications
- Frequency: 310 MHz +/- 250 KHz
- Relay(s): Form C relay (NC connection available on PCB) rated at 30 V AC/DC up to 5 Amps
- Antenna: 75 Ohm F connector
- Voltage: 12 - 30 VAC or 10.5 - 30 VDC; 14 mA nominal, 45 mA maximum while relay is triggered
- 36” 22AWG wires on removable connectors. Power: red and black wires CH1 Relay: 2 gray wires
| SKU | GRD |
|---|---|
| Input Voltage | 12 DC, 12 AC, 24 DC, 24 AC |
| Frequency | 310 MHz |
| Channels | 1 |
| Number of Dipswitches | 1 |
| Product | Receiver |
| Color | Black |
| Manufacturer | MMTC, Inc. |
