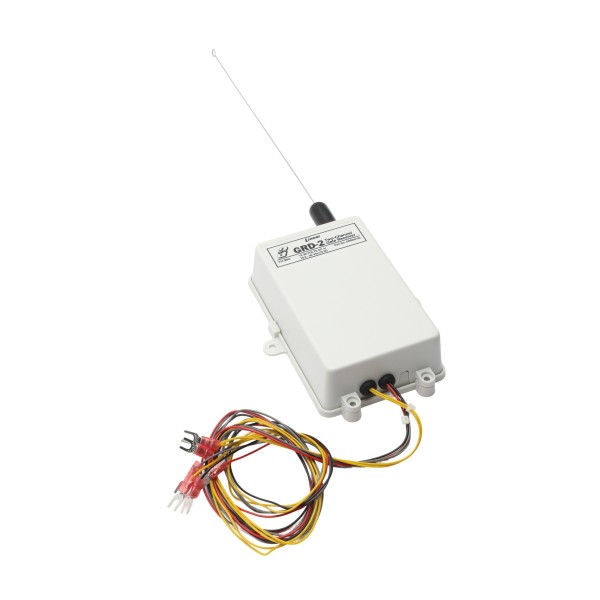

MMTC Two-Channel Auto-Sensing Gate Opener Receiver with Antenna - GRD2

The GRD2 is a two-channel auto-sensing automatic gate receiver for gate opener systems with remote antennas. This receiver can operate two gates, one gate and a sensor, or each channel can be assigned opening and closing functions. It uses Delta-3 radio formatting with 256 possible codes, set by a dipswitch. This receiver can operate from 12-30 volts AC or 10.5-30 volts DC and are normally powered from the gate operator. Its relay contacts are rated at 5 amps @ 30 volts AC/DC and use a frequency of 310 MHz. Includes a 9-inch local antenna, three feet of 75-ohm coaxial cable, and a bulkhead connector for locating the antenna outside the gate operator enclosure.

Specifications

• Frequency: 310 MHz +/- 250 KHz
• Relay(s): Form C relay (NC connection available on PCB) rated at 30 V AC/DC up to 5 Amps
• Antenna: 75 Ohm F connector
• Voltage: 12 - 30 VAC or 10.5 - 30 VDC; 14 mA nominal, 45 mA maximum while relay is triggered
• 36” 22AWG wires on removable connectors. Power: red and black wires CH1 Relay: 2 gray wires CH2 Relay: 2 yellow wires
