Two Button Exterior Surface Mount with Lockout Control (NEMA 4 - 6 amp @ 125-250V AC) - MMTC 2BXL

Add an extra level of security to a gate or door opening system with the MMTC 2BXL Exterior Two-Button Control Station, which features a lockout feature to help prevent tampering.
Part Number: 2BXL
$85.73 each
$85.73 each
OR


Details

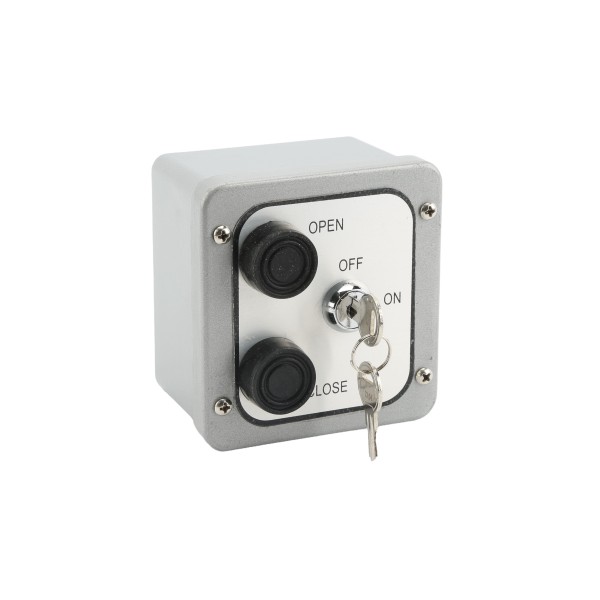

Two Button Exterior Surface Mount with Lockout Control (NEMA 4 - 6 amp @ 125-250V AC) - MMTC 2BXL

Add an extra level of security to a gate or door opening system with the MMTC 2BXL Exterior Two-Button Control Station, which features a lockout feature to help prevent tampering. It sports a vertical, two-button configuration housed inside a NEMA 3R, 4 and 12-Rated enclosure for top-notch protection against the elements. A surface-mounted design allows for easy installation and its normally open design streamlines the wiring process.

Features:

  • Keyed Lockout
  • Surface Mounted
  • Added Layer Of Security
  • NEMA 3R, 4 And 12-Rated
  • Vertical, Two-Button Arrangement

Specifications:

  • Fully Guarded
  • Normally Open
  • Keyswitch: 4 amp @ 250V AC
  • Button: 6 amp @ 125-250V AC
  • Dimensions: 4 3/8" (H) 4 1/8" (W) X 2 5/8" (D)

Specification Sheet

SKU 2BXL
Product Button Control
Button Type Two Button
Mount Type Surface Mount
Input Voltage 110/115/120 AC (60 Hz, 1 Phase), 220/230/240 AC (60 Hz, 1 Phase)
Usage Exterior Tamperproof - Nema 4
Manufacturer MMTC, Inc.
Part Number 36R996
