Three Button Exterior Open-Close-Stop Surface Mount with Lockout Control (NEMA 4 - 4 amp @ 250V AC) - MMTC 3BXL
Details
Three Button Exterior Open-Close-Stop Surface Mount with Lockout Control (NEMA 4 - 4 amp @ 250V AC) - MMTC 3BXL

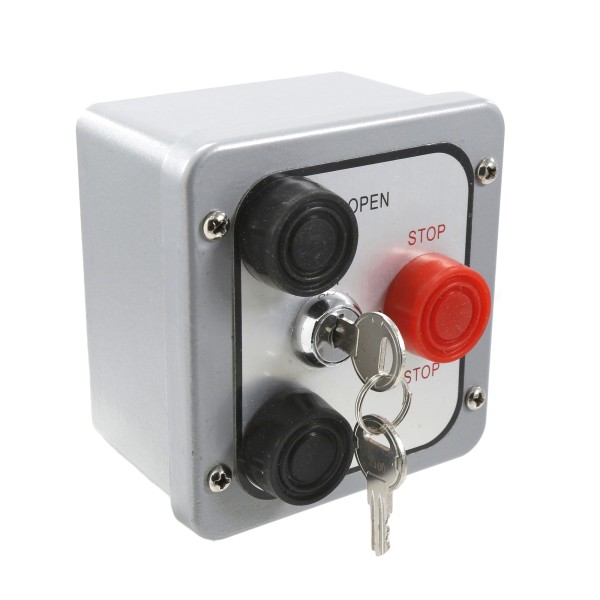

Employ the MMTC 3BXL NEMA 4 Surface Mount Exterior Sensor Control with Lockout when security and protection against the elements are paramount for a gate or door opening system. Built with a triangular three-button configuration, this sturdy control station is housed inside a NEMA 4-rated enclosure and also features a lockout feature that requires a key for access, reducing the chances of tampering. Its open, close and stop buttons are color coded and aligned in a triangular pattern for ease of installation and use.
Features:
- Surface Mounted
- NEMA 4-Rated Enclosure
- Designed For Exterior Use
- Open, Close, Stop Operation
- Color-Coded Buttons For Ease Of Use
- Lockout Protection Against Tampering
Specifications:
- Fully Guarded
- Keyswitch: 4 amp @ 250V AC
- Button: 6 amp @ 125/250V AC
- Normally Open, Normally Closed
- Dimensions: 4 3/8" (H) X 4 1/8" (W) X 2 5/8" (D)
| SKU | 3BXL |
|---|---|
| Product | Button Control |
| Button Type | Three Button |
| Mount Type | Surface Mount |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase), 220/230/240 AC (60 Hz, 1 Phase) |
| Usage | Exterior Tamperproof - Nema 4 |
| Manufacturer | MMTC, Inc. |
| Part Number | 36R997 |
