Details

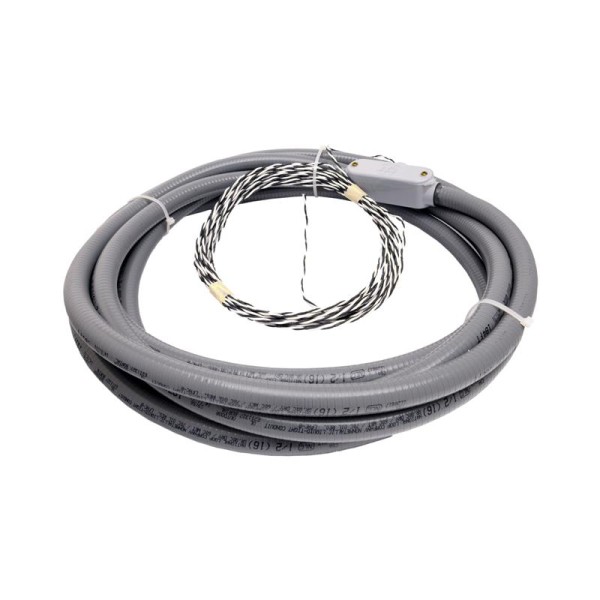

MMTC 24' Direct Burial Preformed Loop for Gate Openers - 4x6P

The MMATC 4X6P Paveover Preformed Loop comes with a 30-foot lead and 4X6-foot loop. The loop is supplied with 18 AWG insulated wire and is suited for detecting a vehicle in a smaller driving or parking area. As the vehicle passes over the loop, it breaks the circuit, prompting the loop detector to send a signal to a relay in the garage or gate opener. Gate and door safety matter and with this loop, a system becomes safer and more functional.

Features:

• PVC-Insulated
• Loop Type: Direct Burial
• 6.4Ω Wire Resistance Per Foot
• Preformed For Ease Of Installation
• Specifically Designed For An Exact Fit
• Loop And Lead In Cables Are Flexible And Easy To Install

Loop Specifications:

• Cable Diameter: 0.0403"
• Inductance: 100
• Turns: 4
• Detection Height: 4'

Lead-In Cable Specifications:

• Length: 30'
• Wire Insulation: PVC
• Conductor: #18 AWG
• Material: Nickel-Plate Copper Cable
• Number Of Conductors: 1
