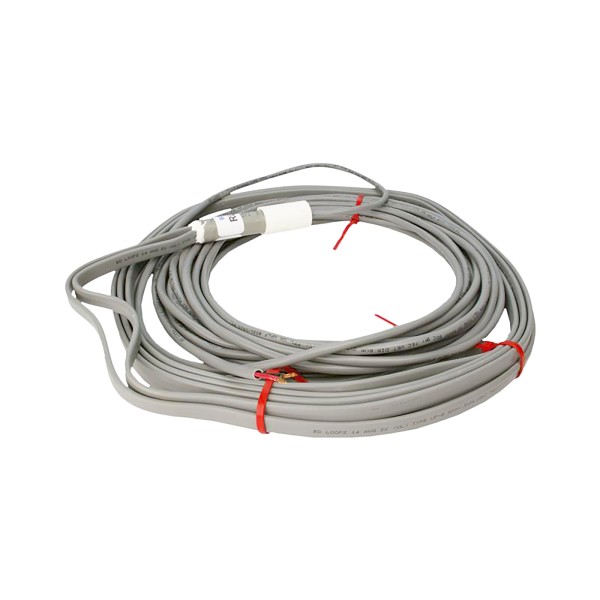

MMTC 32' Direct Burial Paveover Preformed Loop for Gate Openers - BD-4x8P
Details
MMTC 32' Direct Burial Paveover Preformed Loop for Gate Openers - BD-4x8P
The BD-4X8P Paveover Preformed Loop comes with a 40-foot lead and 4'X8' loop. The loop is supplied with 18 AWG insulated wire and is suited for detecting a vehicle in a smaller driving or parking area. As the vehicle passes over the loop, it breaks the circuit, prompting the loop detector to send a signal to a relay in the garage or gate opener. Gate and door safety matter and with this loop, a system becomes safer and more functional.
p>Features:- Loop Type: Direct Burial
- 6.4Ω Wire Resistance Per Foot
- Preformed For Ease Of Installation
- Specifically Designed For An Exact Fit
- Loop And Lead In Cables Are Flexible And Easy To Install
Loop Specifications:
- Loop Size: 32
- Cable Diameter: 0.0403"
- Inductance: 100
- Turns: 4
Lead-In Cable Specifications:
- Length: 40'
- Conductor: #18 AWG
- Material: Nickel-Plate Copper Cable
| SKU | BD-4X8P |
|---|---|
| Product | Preformed Loop |
| Lead-In Size | 40' |
| Loop Size | 32' |
| Installation Method | Direct Burial |
| Product Type | Loops |
| Manufacturer | MMTC, Inc. |
