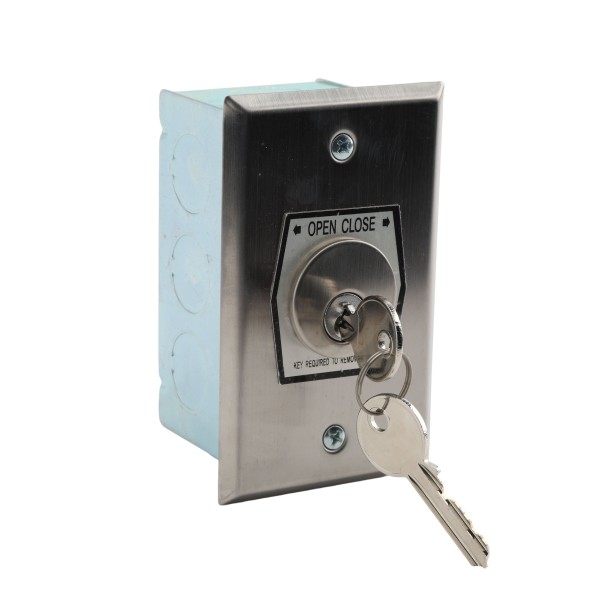

Exterior Flush Mount Single Gang Keyswitch - MMTC HBFX

The MMTC HBFX Exterior Flush Mount Keyswitch features simple Open, Close operation and it's designed for exterior use.
Part Number: HBFX
$101.18 each
$101.18 each
OR


Details

Exterior Flush Mount Single Gang Keyswitch - MMTC HBFX

The MMTC HBFX Exterior Flush Mount Keyswitch features simple Open, Close operation and it's designed for exterior use. With a NEMA 1-rated enclosure and stainless steel face plate, it is well-protected against the elements in harsh conditions. Its center return feature brings the door back to its original position when the key is centered. This switch is easy to install and quickly adds a useful layer of security to a gate or door system.

Features:

  • Center Return
  • Flush Mounted
  • Mortise Cylinder
  • Open, Close Operation
  • NEMA 1-Rated Enclosure
  • Stainless Steel Face Plate

Specifications:

  • Single Gang Back Box
  • Keyswitch: 15 amp @ 125/250V AC
  • Box Dimensions: 4" (H) X 2" (W) X 2" (D)
  • Face Plate Dimensions: 4 1/2" (H) X 2 3/4" (W)
  • Cylinder: 5-Pin, 1 1/8" Diameter, 1" Length

Specification Sheet

Prefer to Call? (888) 378-1043

Questions about part number HBFX?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU HBFX
Product Keyswitch
Mount Type Flush Mount
Usage Exterior Tamperproof
Manufacturer MMTC, Inc.
Input Voltage 110/115/120 AC (60 Hz, 1 Phase), 220/230/240 AC (60 Hz, 1 Phase)
Part Number 36T017
