MMTC Exterior Flush Mounted Open-Close Keyswitch w/ Mortise Cylinder (Keyed Alike) - 1KFX-KA
Details

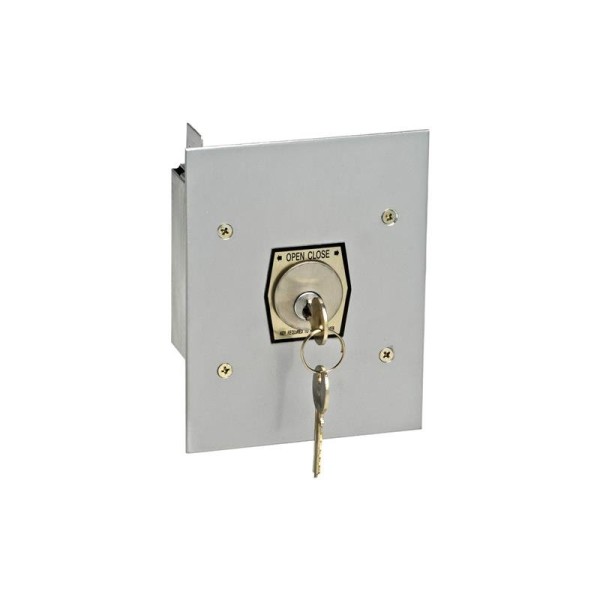

MMTC Exterior Flush Mounted Open-Close Keyswitch w/ Mortise Cylinder (Keyed Alike) - 1KFX-KA
The MMTC 1KFX-KA keyswitch is a flush-mount, exterior-rated control device designed to manage gate OPEN and CLOSE commands via a mortise-type cylinder. It features a two-position configuration with a spring-loaded center return and is rated for 15 amps at 125/250VAC. The unit includes a brushed aluminum 6" x 4-3/4" faceplate and a 3-3/4" x 3-3/4" back box, along with tamper-resistant mounting. This model is keyed alike for streamlined multi-unit access and is compatible with BEST core or SLF large format changeable cylinders.
Features
- Two-position keyswitch: OPEN-CLOSE with center return
- Exterior flush mount with brushed aluminum faceplate
- Mortise cylinder (5-pin, 1-1/8" diameter x 1" length)
- Keyed alike for multi-unit compatibility
- Rated at 15 amps @ 125/250VAC
Specifications
- Faceplate Dimensions: 6" H x 4-3/4" W
- Back Box Dimensions: 3-3/4" H x 3-3/4" W x 2-3/4" D
- Mount Type: Flush
- Cylinder Type: Mortise (BEST core or equivalent optional)
- Application: Exterior gate or door access control
SKU | 1KFX-KA |
---|---|
Product | Keyswitch |
Mount Type | Flush Mount |
Manufacturer | MMTC, Inc. |
Usage | Exterior |
Specification Sheet | Download PDF file |
