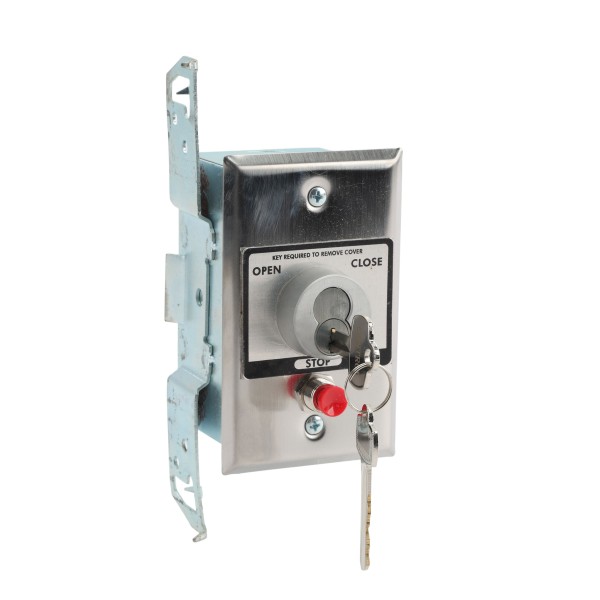

Flush Mount One Button Open-Close Keyswitch with Best Core Mortise Cylinder (NEMA 1 - 15 amp @ 125/250V AC) - MMTC HBFST-BC

Details

Flush Mount One Button Open-Close Keyswitch with Best Core Mortise Cylinder (NEMA 1 - 15 amp @ 125/250V AC) - MMTC HBFST-BC

The HBFST-BC Keyswitch with Best Core Cylinder supplied and installed comes in a NEMA 1-rated enclosure that is tamperproof and provides outstanding protection in interior settings. The HBFST-BC Keyswitch has keyed Open, Close operation with a highly visible red push button for Stop operation. It's flush-mounted and requires minimal space, freeing up room around a gate. Thanks to a stainless steel face plate, it has an added layer of protection its center return feature brings the door back to its original position when the key is centered.

Features:

• NEMA 1-Rated
• Flush Mounted
• Center Return
• Mortise Cylinder
• Single Gang Back Box
• Open, Close Operation

Specifications:

• Keyswitch: 15 amp @ 125/250V AC
• Cylinder: 5-Pin, 1 1/8" Diameter, 1" Length
• Box Dimensions: 4" (H) X 2" (W) X 2 3/4" (D)
• Face Plate Dimensions: 4 1/2" (H) X 2 3/4" (W)

Specification Sheet
