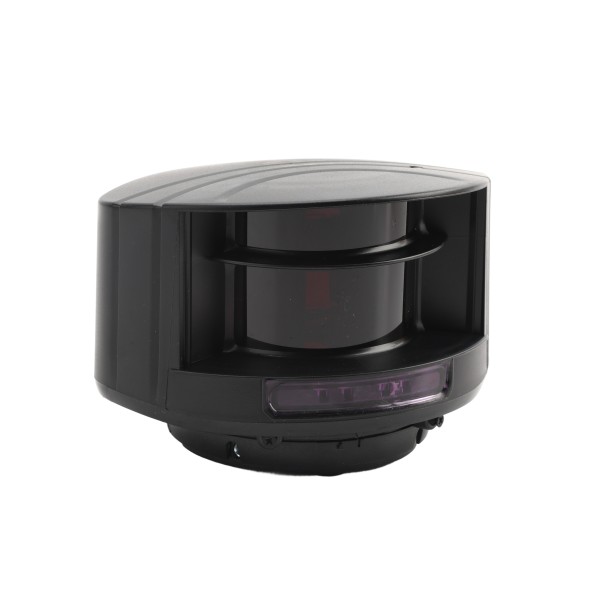

BEA LZR-H100 Laser Scanner for Gates & Barriers - 10LZRH100

Key Features:

• Laser-based Time-of-Flight sensor designed for gate and barrier applications
• Effective alternative to induction loop detectors where cutting the ground is prohibited or costly
• Four configurable laser curtains provide accurate three-dimensional detection zones
• Dual-relay activation allows triggering by motion or presence
• Trajectory detection enables monitoring of vehicle approach and departure
• Pedestrian-traffic rejection feature filters non-vehicle movement
• Large detection field with a maximum range of 32 ft x 32 ft
• Reliable and constant detection using opto-electronic, presence-based sensing
• Simple teach-in setup using walk path or remote control configuration
• Durable IP65-rated housing for outdoor environments

Specifications:

• Technology: Laser scanner, Time-of-Flight measurement
• Detection Mode: Motion and presence
• Maximum Detection Range: 32 ft x 32 ft (9 3/4 m)
• Remission Factor: Greater than 2%
• Angular Resolution: 0.3516 Degrees
• Emission Characteristics:
  • Infrared Laser: Wavelength 905 nm, maximum output pulse power 0.10 mW (Class 1)
  • Red Visible Laser: Wavelength 635 nm, maximum output continuous power 3 mW (Class 2R)
• Supply Voltage: 10 - 35 VDC at sensor terminal
• Peak Current at Power-On: 1.8 A (maximum 80 ms at 35 V)
• Power Consumption: Less than 5 W
• Response Time: Motion detection: typical 200 ms (adjustable); presence detection: typical 20 ms (maximum 80 ms)
• Output: 2 electronic relays (galvanically isolated, polarity free)
• Maximum Switching Voltage: 35 VDC / 24 VAC
• Maximum Switching Current: 80 mA (resistive)
• Switching Time: tON = 5 ms, tOFF = 5 ms
• Output Resistance: Typical 30 ohms
• Voltage Drop on Output: Less than 0.7 V at 20 mA
• LED Signal:
  • 1 blue LED: Power on
  • 1 orange LED: Error status
  • 2 bi-colored LEDs: Detection / Output status (green = no detection, red = detection)
• Dimensions: 3 5/8" (W) x 2 3/4" (H) x 5" (D); sensor base: +1/2"
• Cable Length: 33 ft
• Material: PC / ASA
• Color: Black
• Rotation Angle on Bracket: ~5 Degrees (lockable)
• Tilt Angle on Bracket: ~3 Degrees
• Degree of Protection: NEMA 4 / IP65
• Temperature Range (Powered): -22 F to 140 F (-30 C to 60 C)
• Temperature Range (Unpowered): 14 F to 140 F (-10 C to 60 C)
• Humidity: 0 - 95% non-condensing
• Vibrations: Less than 2 G
• Pollution on Front Screens: Maximum 30%, homogenous
• Norm Conformity: 2006/95/EC (LVD), 2004/108/EC (EMC), IEC 60825-1:2007, IEC 61000-6-2:2005, 2002/95/EC (RoHS), IEC 60529:2001, IEC 60950-1:2005, IEC 61000-6-3:2006
