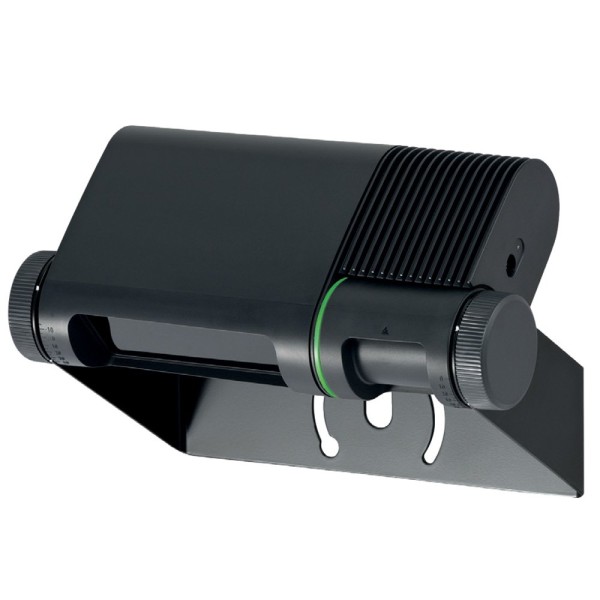

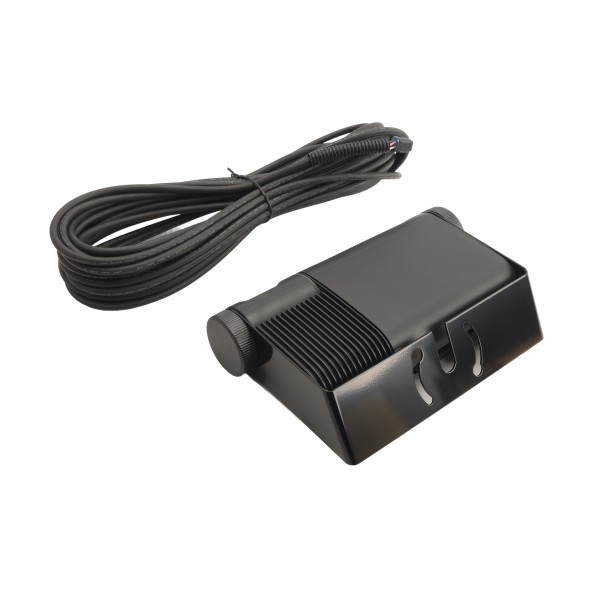

Optex Motion and Presence Detector - OAM-Explorer
The Optex OAM-Explorer is a cutting-edge sensor designed for safety and enhanced operational efficiency. It combines activation and supplementary safety features and employs advanced technology to ensure coverage and reliable performance. It has a large microwave detection area that serves as an efficient activation sensor and integrated infrared technology for superior sensing. It can control external devices, such as warning lights or alarms, ensuring that everyone is aware of the door's movements, and reducing the risk of accidents and collisions. The OAM-EXPLORER can be set up and configured with the smartphone app.
Features
- Large detection range
- Audible and visual movement indicators
- Easy set up
Specifications
- Mounting height: 6' 7" to 19' 8"
- Detection method: Active infrared reflection (AIR); Microwave doppler effect
- Transmitter frequency: 24.2GHz
- Transmitter radiated power: < 12.7dBm
- Depth angle adjustment: Microwave area: 0 Degrees to +50 Degrees; AIR area: -15 Degrees to +40 Degrees
- Power supply: 12 to 24 VAC ±10% (50/60 Hz); 12 to 30 VDC ±10%
- Power consumption: 3.5W (5.0 VA at AC)
- Output hold time: Approx. 0.5 sec. (selectable via app.)
- Response time: < 0.3 sec. (selectable via app.)
- Operating temperature: –31 to 131 Degrees F
- Operating humidity: <80%
- Communication method: Bluetooth LE (Ver. 4.0)
- Activation output: Form B relay 50 V 0.3 A Max. (Resistance load)
- Supplemental safety output: Form B relay 50 V 0.3 A Max. (Resistance load)
- AUX output: Form B relay 50 V 0.3 A Max. (Resistance load)
- Protection degree: IP65 / NEMA4
- Weight: 21.2 oz.
SKU | OAM-EXPLORER |
---|---|
Input Voltage | 12 DC, 12 AC, 24 DC, 24 AC |
Specification Sheet | Download PDF file |
Installation Guide | Download PDF file |
