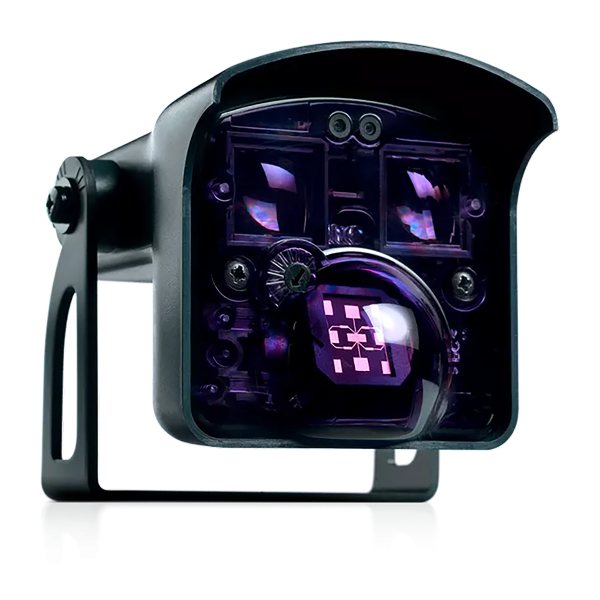

MMTC Motion & Presence Detector for Industrial Applications - IS40 XL

The IS40XL is a dual-technology sensor designed to provide motion and presence detection in industrial applications. It is mounted from 6.5' to 11.5' and housed in an IP65-rated enclosure to prevent damage caused by dust, rain, or debris.

Features

• Energy saving
• Adjustable direction settings
• Customizable patterns
• Minimizes false detection
• Remote programmable
• Nine unique infrared patterns for flexible presence detection
• Rugged enclosure rated NEMA 4 / IP65 for harsh industrial environments
• Wide mounting height flexibility (6 1/2 ft to 11 1/2 ft)
• Two relay outputs (activation & presence) with LED indicators (green, red)

Specifications:

• Technology: Microwave Doppler Radar + Active Infrared
• Max Detection Field: 13 ft x 6 1/2 ft
• Dimensions: 3 3/4" (W) x 4" (H) x 5" (L)
• Power Consumption: Approx. 3.5 W
• Tilt Angle (relative to sensor face): -8 Degrees to 22 Degrees (or 15 Degrees to 45 Degrees)
• Detection Modes: Motion & Presence
• Motion & presence mode
• Red & green LED signals
• 24 GHz transmitter frequency
• 2 relays
• 42 VAC/DC
