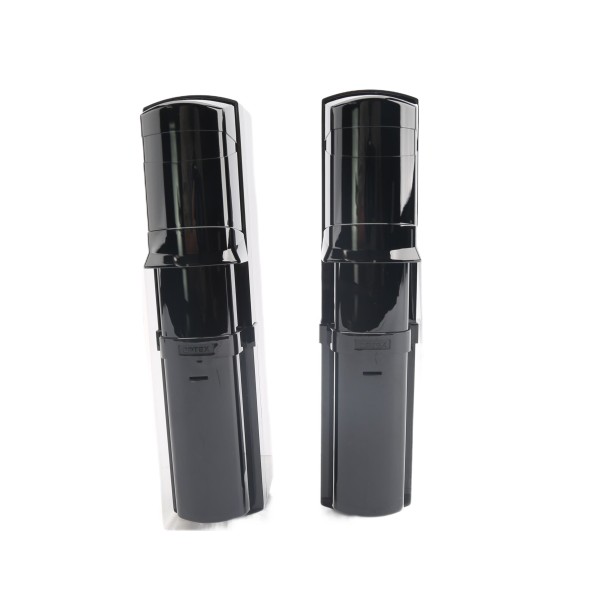

OPTEX Commercial Monitored Battery Powered Wireless Monitored Hybrid Through Beam Photo Eye (50 ft. Range Dual IR Beam) OVS-50TNR

The OVS-50 TNR Monitored Hybrid Photoelectric Through Beam Photo Eye, designed and manufactured by OPTEX, is an extremely cost-effective, reliable, and versatile Active Infrared vehicle presence detection solution. Installation is quick and easy, requiring no concrete cutting and no wiring on the transmitter side, and once installed, the battery life will last up to 8 years and also provide a 50 ft. point-to-point maximum operating range!
Part Number: OVS-50TNR
$294.00 each
$294.00 each
OR


Details

OPTEX Commercial Monitored Battery Powered Wireless Monitored Hybrid Through Beam Photo Eye (50 ft. Range Dual IR Beam) OVS-50TNR

The OVS-50 TNR Monitored Hybrid Photoelectric Through Beam Photo Eye, designed and manufactured by OPTEX, is an extremely cost-effective, reliable, and versatile Active Infrared vehicle presence detection solution. The Active Infrared dual-beam photo-eye set provides extremely dependable operation in even the most severe weather conditions. It comes with an IP65 internal protection rating and can stably operate in temperatures ranging from -4°F to 140°F, and with humidity conditions up to 95%. Installation is quick and easy, requiring no concrete cutting and no wiring on the transmitter side, and once installed, the battery life will last up to 8 years and also provide a 50 ft. point-to-point maximum operating range!

Features:

  • Operating Range: 50 ft. Point To Point
  • Quick & Easy Installation With Battery Driven Transmitter
  • Slim & Sleek, Low Profile Body Design
  • LED Optical Alignment For Simplified Optical Adjustment (Sniper View Finder With 2x Magnification)
  • Extremely Long 8 Year Battery Operating Life
  • IP65 Water-Proof Protection Rating Ideal For Outdoor Installations
  • UL325 2016 Compliant Safety Rating

Technical Specifications:

  • Max Detection Range: 50 ft.
  • Detection Method: Twin infrared beam interruption detection
  • Interruption Time: Variable between 20 / 100 / 250 / 500 ms (4 steps)
  • Transmitter Power Source: (2) 3.6 VDC D Size Lithium Batteries
  • Reeceiver Power Source: 12-24 VDC
  • Transmitter Current Draw: Transmitter: 130μA
  • Receiver Current Draw: Receiver: 80μA (max.)
  • Battery Life: Approximately 8 Years
  • Output: Form C Relay; 30 VDC 0.2A
  • Output Hold Time: Blocked Beam Period +0.5 Sec.
  • Resistive Termination: 10K ohm across NO contact
  • Beam Alignment Angle: ±90° Horizontal, ±5° Vertical
  • Operating Temperature: -4°F to 140°F
  • Operating Humidity: 95% Max.
  • Dimensions: 11.6" H x 2.7" W x 4.6" D
  • Internal Protection Rating: IP65 (Waterproof)
  • Listing: UL325 2016 Compliant

Prefer to Call? (888) 378-1043

Questions about part number OVS-50TNR?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU OVS-50TNR
Product Photo Eye
Monitored/Non-Monitored Monitored
Input Voltage 12 DC, 24 DC
Manufacturer Optex, Inc.
Voltage 12-24V DC
Product Type Sensor
