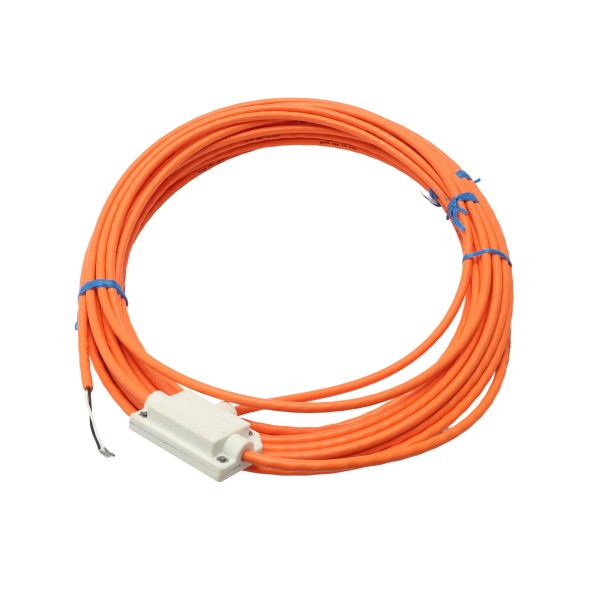

Reno A&E 24' Heavy-Duty Direct Burial Preformed Loop for Gate Openers With 50' Lead-In - PLH-24-50 (10'-12' Wide Driveways)

Stronger than standard loops, the Reno A&E Heavy Duty Direct Burial Loop is easy to handle and install to 1/8" or larger saw cuts. The cross-linked polyethylene wire insulation ensures reliability with incredible resistance to moisture and chemicals.
Part Number: PLH-24-50

$135.80 each
OR


Details

Reno A&E 24' Heavy-Duty Direct Burial Preformed Loop for Gate Openers With 50' Lead-In - PLH-24-50 (10'-12' Wide Driveways)

The Heavy Duty Direct Burial Loop is a prefabricated loop and lead-in assembly designed and manufactured by Reno A&E. Specifically designed for direct hot asphalt overlay, this heavy-duty loop has cross-linked polyethylene wire insulation and cable jackets that resist the effects of reflective cracking that is common in asphalt installations as well as a water block gel filler that prevents water penetration. Stronger than most loops on the market, the Heavy Duty Direct Burial Loop has a four conductor, double jacketed cable construction and a two conductor, double jacketed lead-in cable. Moisture and chemical resistant, this loop has incredible thermal, electrical, physical properties that aid in its long-lasting, high-quality performance.

Features:

  • Loop Type: Direct Burial
  • Designed For Direct Asphalt Overlay
  • Specially Designed For An Exact Fit
  • Eliminates Need For 45 Degree Corners
  • Water Block Gel Prevents Moisture Penetration
  • Loop And Lead In Cables Are Flexible And Easy To Install
  • Splice Connections Soldered, Sealed, And Tested

Loop Specifications:

  • Loop Length: 24'
  • Four Conductor Loop Cable, Double Jacketed
  • Loop Cable Nominal OD: 0.360"
  • Nominal XLPE Insulation: 0.020"
  • XLPE Outer Jacket: 0.035"
  • XLPE Inner Jacket: 0.040"
  • Conductor: #18 AWG Stranded Tinned Copper

Lead-In Cable Specifications:

  • Length: 50'
  • Two Conductor, Double Jacketed Cable
  • Water Block Gel and Rope Filler
  • Nominal OD: 0.230"
  • XLPE Insulation: 0.020"
  • XLPE Outer Jacket: 0.040"
  • XLPE Inner Jacket: 0.040"
  • Wire Insulation: Cross-Linked Polyethylene (XLPE)
  • Conductor: #16 AWG Stranded Tinned Copper
SKU PLH-24-50
Residential Driveway Width 12 ft.
Commercial Driveway Width 10 ft.
Product Preformed Loop
Lead-In Size 50'
Loop Size 24'
Installation Method Direct Burial
Product Type Loops
Manufacturer Reno A&E
