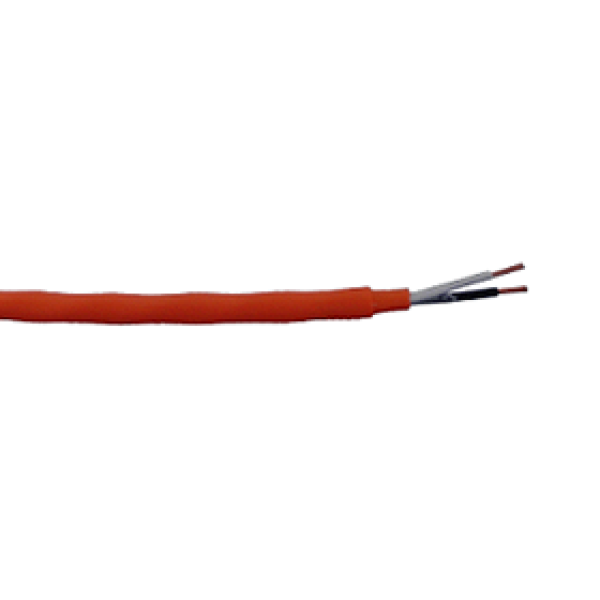

Reno A&E Two Conductor, Double Jacketed Lead-In Cable (Orange) - LW-216-HD-O

The Two Conductor Lead-In Cable, designed and manufactured by Reno A&E, is a two conductor lead-in wire that can be used for loop installations requiring long lead-in runs. This lead-in cable is sold by the foot.
Part Number: LW-216-HD-O
$1.5820 each
$1.5820 each
OR


Details

Reno A&E Two Conductor, Double Jacketed Lead-In Cable (Orange) - LW-216-HD-O

The Two Conductor Lead-In Cable, designed and manufactured by Reno A&E, is a two conductor lead-in cable that can be used for loop installations in which long lead-in runs are required. Constructed with cross-linked polyethylene (XLPE) this Two Conductor Lead-In Cable has a twisted pair design. The top of the line XLPE insulation and cable jackets provide unbeatable thermal, electrical, and physical properties which contribute to its reliable and long lasting performance life. Twisting lead-ins ensure tight coupling with the benefit of better rejection of unwanted external fields. The Two Conductor Lead-In Cable features abrasion, moisture, and chemical resistance. It has a water block gel interior as well as moisture resistant binding tape. This lead-in cable withstands temperatures up to 426° F (219° C).

Features:

  • Double Jacketed
  • For Use In 3/8" Saw Slots
  • Twisted Pair Design: 8x Per Foot
  • Moisture Resistant Binder Tape
  • Water Block Gel Interior
  • Outer Jacket Color: Orange
  • Abrasion, Moisture, And Chemical Resistant
  • Conductor Insulation Colors: Black And White

Specifications:

  • Part Number: 380-0202-03
  • Nominal OD: 0.360" +/- 0.020"
  • Nominal XLPE Outer Jacket OD: 0.042"
  • Nominal XLPE Inner Jacket OD: 0.040"
  • Temperature Range: Up To 426° F
  • Conductor: #16 AWG (Nineteen Strands Of #29 AWG Tinned Copper Wire)
SKU LW-216-HD-O
Product Lead-In Cable
Lead-In Size Sold per Foot
Products Sold By The Foot Two Conductor Lead-In Cable
Installation Method Saw-Cut
Conductor Type Two
Jacket Types Double
Product Type Loops
Manufacturer Reno A&E
