SES Select Pass RF Controller 1 Single Relay - SPRFC1

Details

SES Select Pass RF Controller 1 Single Relay - SPRFC1

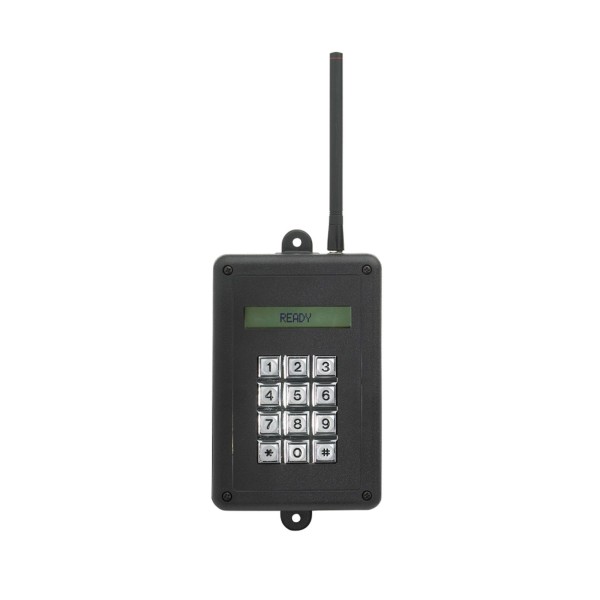

The SPRFC1 is a stand-alone-RF controller compatible with SES Select Pass RF transmitters products. This device can identify and validate a combination of fifty-thousand (50,000) RF transmitters or PIN codes. The SPRFC1 activates directly a dry relay contact. The output relay can then be connected to a vend input connection of a gate operator to activate the chosen gate. This unit includes a heavy-duty built-in (3x4) metal keypad and LCD display; you can power it from a 12/24volt AC/DC power supply.

Key Features:

• Single Form C Dry Contact For Gate Openers Rated 0.5A 24VDC
• Can Store 50,000 Transmitters And Pin Codes
• Relay Can Be Programmed From 1/2 to 9 Seconds
• Non-Volatile Memory
• Store 10 Master Transmitters
• Can Validate Facility Codes, Card Numbers, Or Can Be Used To Match Facility Code And Card Numbers
• Four-Digit Programmable Password
• Can Store Up To 10 Master Transmitters And Can Delete or Add Transmitters Without Keypad
• Bulk Load Transmitter Numbers

Specifications:

• Construction: SPRFC1 ABS Plastic
• Power Input: 12/24 VAC Or VDC
• Consumption: 20 mA Idle Current
• Display LCD 1 x 16 Character STN Type
• Antenna Type: SMA Mini Whip Omni-Directional
• Memory Type: Non-Volatile EEprom
• Mounting: Protection Required For Area Of SPRFC1
• Operating Temp: -4 Degree F To 158 Degree F

Applications:

• Residential Gates And Garages
• Townhouses
• Condominium Access
• Retirement And Convalescent Homes
• Gated Communities Or Commercial Use
