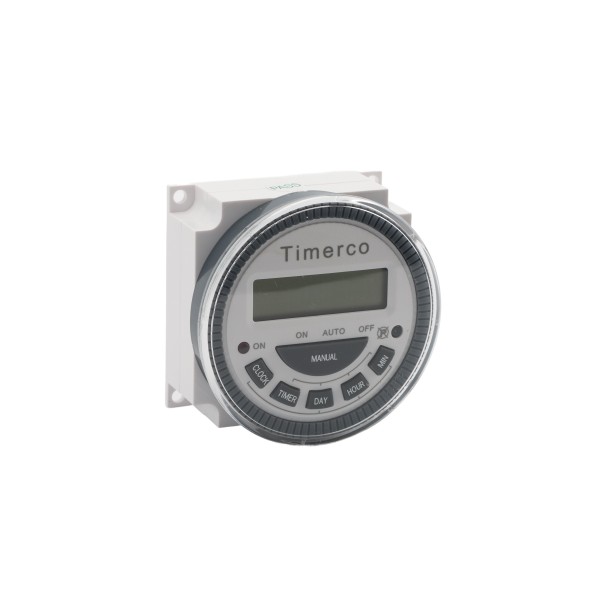

TM619 12V 24-Hour Weekly Timer

The TimerCo TM619 12V 24-Hour Weekly Timer is a seven-day timer with up to eight programmable on/off functions per day.
Part Number: TM619-12

$33.00 each
OR
Quantity Price Each
  1+$33.00
  10+$28.00


Details

TM619 12V 24-Hour Weekly Timer

The TM619 12V 24-Hour Weekly Timer is a seven-day timer with up to eight programmable on/off functions per day. It comes in three different voltages, making it compatible with a wide range of applications. The specified voltage is relative to the timer only, not to the device or system it controls. Simply connect the timed device to the contacts of the output relay, which is rated to a maximum of 16a resistive and 8a inductive at 250V AC, 20 amps resistive at 125V AC and 16a at 30V DC.

Features:

  • Simple Installation
  • Anti-Burglar Override
  • Clearly Labeled Buttons
  • Clearly Visible Digital Display
  • Easily Control A Timed Device
  • Up To 8 Programmable On/Off Functions A Day

Specifications:

  • Five Terminals
  • Input Voltage: 120V AC, 50Hz To 60Hz
  • CR2032 Lithium Battery Required (Not Included)
  • Output Relay: Maximum Of 16a Resistive And 8a Inductive At 250V AC, 20 Amps Resistive At 125V AC And 16a At 30V DC
View Manual
SKU TM619-12
Product Timer
Color Gray
Voltage 12V AC/DC
Product Type Timers
Manufacturer EMX Industries, Inc.
