Details

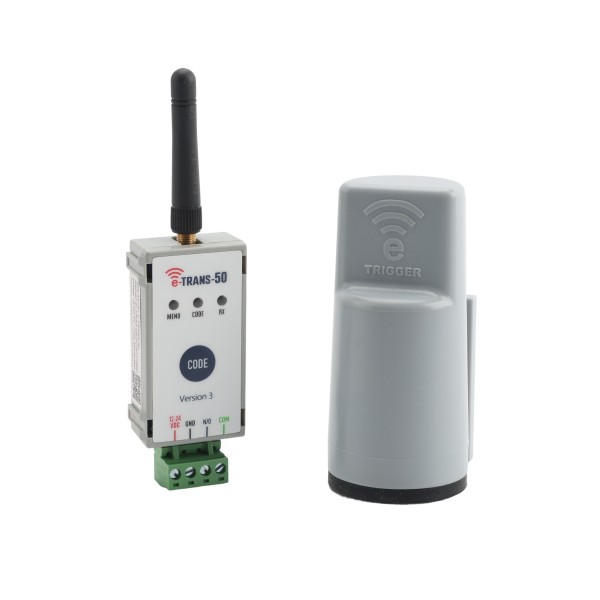

AES E-TRANS50 Wireless Transmitter and Receiver Kit for AES E-Loop Access Control Systems - E-TRIGGER-KIT

The E-Trigger eliminates wiring to gate motors and doors. This unit connects to a wireless transceiver housed and connected to the gate motor, creating a wireless bridge to the transceiver on the gate motor, activating the relay, and opening the gates/door. The fully waterproof housing allows for external fitting with an easy-to-attach bracket provided. This E-trans 50 transceiver is designed to provide access control for both gates and door applications. This transceiver has phenomenal reach and offers a range of voltage capabilities from 10-36V DC.

E-Trigger Specifications

• Power: 12-24VDC input or 3V CR2045 battery
• Optoisolator Input Protection
• Wire input hole diameter: 4.4mm to 6mm
• 100 Meter Range
• Frequency: 433.39 MHz

E-Trans 50 Specifications:

• Frequency: 433.39 MHz
• Voltage Range:10-36V DC
• Remote Storage: 50 remotes, 4 loops, 4 keypads, and 4 entry buttons
• Relay:1 amp contact rating
• Multiple Modes: Pulse, latch, and hold
• Low Current Draw: 4.5 m/a standby and 30 m/a active
