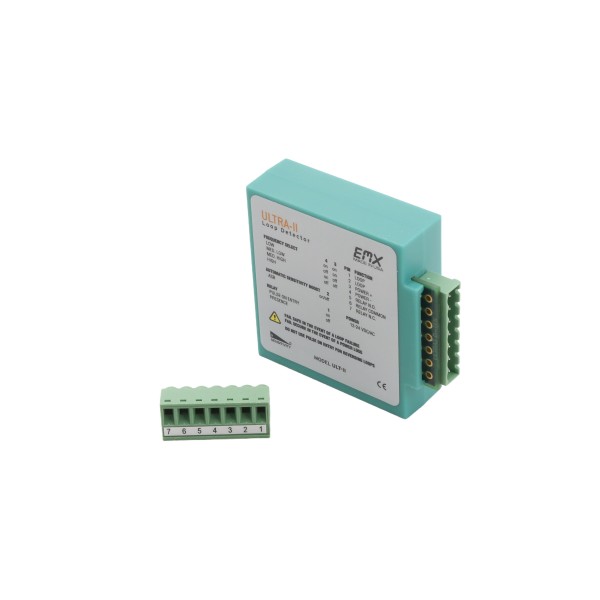

EMX ULTRA2 D-TEK Vehicle Loop Detector

The Ultra2 D-TEK Vehicle Looop Detector is a cost effective, reliable and easy-to-set-up vehicle detection solution that automatically detects and displays the recommended sensitivity for a vehicle positioned on top of the loop detector. Sensitivity selection is simplified by the UltraMeter display, which indicates the appropriate sensitivity setting to detect the vehicle positioned on the loop. Its 10 sensitivity settings allow for finer adjustment of the detection level, while the four frequency settings provide greater flexibility in preventing crosstalk in multi-loop applications. Red and green LED indicator lights make it easy to check proper functionality, making it easier to monitor and maintain the system.

Features:

• Compact design
• Energy Efficient
• Loop Diagnostics
• Loop Fail Output
• Frequency Counter
• 10 Sensitivity Settings
• 4 Operating Frequencies
• Easy To Install And Setup
• Reliable And Cost Effective
• Frequency Count/Reset Switch
• Lightning And Surge Protection
• ASB (Automatic Sensitivity Boost)
• Compatible With Most Gate Openers
• UltraMeter Displays Optimum Sensitivity Setting/Crosstalk Interference

Specifications:

• Sensitivity: 10 Levels 0-9
• Connection: 10 Pin Female
• Current Draw: 18 mA Max.
• Loop Ouput: Low On Detect
• Housing Material: PVC (Green)
• External Reset Input: Low To Reset
• Operating Environment: -40°F To 180°F
• Power/Loop Fault Indicator: Green LED
• Dimensions: 2.75" (H) X 0.9" (W) X 3" (L)
• Loop Inductance: 20-2000μh (Q Factor > 5)
• Detect/Frequency Count Indicator: Red LED
• Environmental Tracking: Automatic Compensation
• Power Supply: 12-30 VDC (Reverse Polarity Protected)
• Loop Frequency: 4 Settings (Low, Med-Low, Med-Hi, High)
• Surge Protection: Loop Circuitry Protected By Surge Suppressors
• Filter: Prevents Detection From Cross-Traffic Or RF Interference
• UltraMeter Display: Indicates Optimum Sensitivity Level, 0-9 Diagnostic Aid
• Loop Compensation: Isolation Transformer Allows Operation With Poor Quality Loops
• Automatic Sensitivity Boost Increases Sensitivity After Initial Detection To Prevent Dropout Due To High-Bed Vehicles
