Details

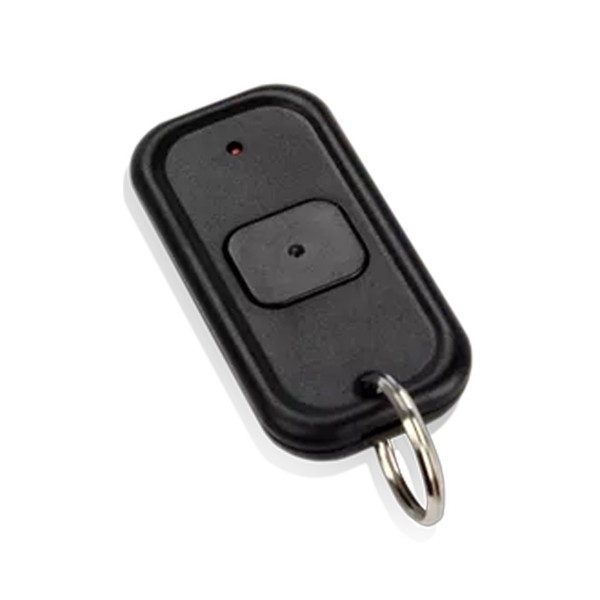

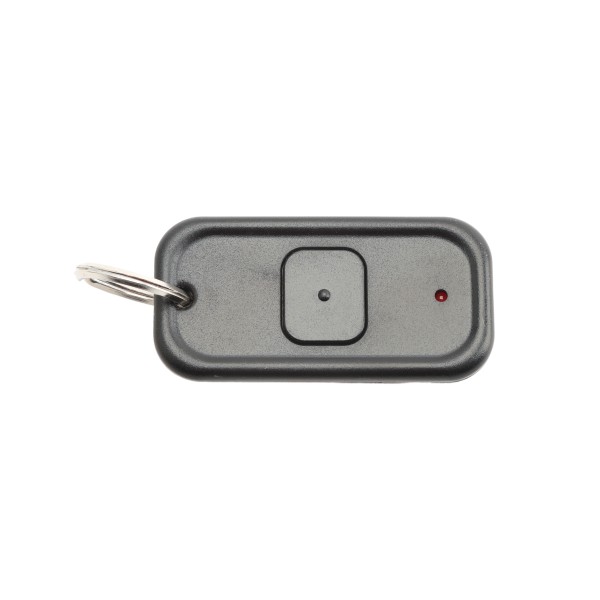

BEA 1-Button Handheld Digital Transmitter (433 MHz) - 10TD433HH1

Key Features:

• Single-button handheld transmitter operating at 433 MHz frequency for wireless door activation
• Digital rolling-code transmission enhances security by changing the code with each use
• Compact ergonomic design allows for user portability and convenient access control
• Compatible with receivers supporting up to 100 programmable transmitters for flexible deployment
• LED indicator confirms transmission and programming status for quick verification

Specifications:

• Frequency: 433 MHz digital
• Operating Voltage: 12-24 V AC/DC (receiver interface compatible)
• Switch Type: 1-channel momentary contact
• Operating Temperature: 14 F to 131 F
• Dimensions (approx): 1.375" x 2.75" depth x 0.6" height
• Unique Codes Supported: Up to 100 transmitters per compatible receiver
• Certifications: FCC and IC compliant
