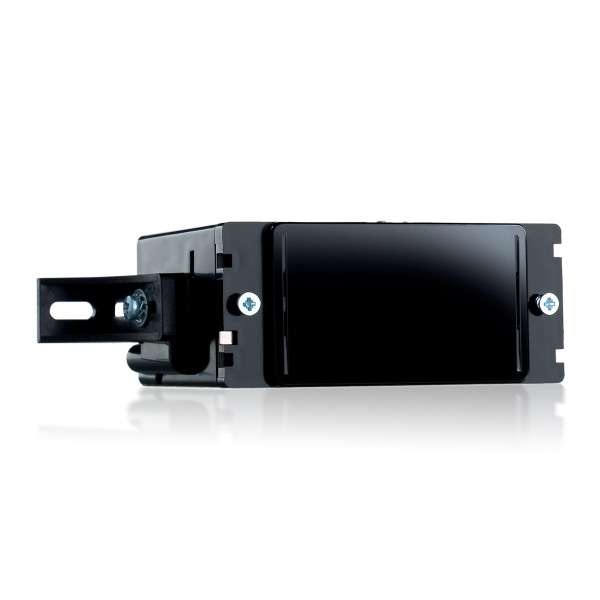

BEA BEAMBOX 3x5 Infrared Spot Matrix Sensor - 10BEAMBOX

Key Features:

• Motion and presence detection using 15 independent infrared spots
• Programmable into nine unique detection zones
• Three rows of five infrared spots for off-door coverage
• Four infrared immunity modes to reduce false triggering
• Low profile / recessed mounting design
• Adjustable tilt angle from 0 Degrees to 20 Degrees in steps of 5 Degrees
• Dry contact relay output (NO / NC)
• Optocoupled monitoring input
• LED indicators (red and green)
• Wide operating and storage temperature capabilities
• Compact size and light weight

Specifications:

• Technology: Active infrared with background analysis
• Detection Mode: Motion & Presence
• Optical Features: 15 independent IR spots, diameter typ. 0.43"
• Maximum Mounting Height: 8 1/5 ft (flush mounting)
• Tilt Angles: 0 Degrees - 20 Degrees (in 5 Degrees steps)
• Detection Zone (W x D): 3 3/10 ft x 3 9/10 ft @ mounting height 6 1/2 ft, tilt 20 Degrees
• Reaction Time: Approx. 100 ms
• Supply Voltage: 12 - 30 VAC ~10%; 12 - 45 VDC ~10%
• Power Consumption: Approx. 3 W (VA)
• Output (Relay): up to 42 VAC - 60 VDC; 1 A (resistive); 30 W (DC) / 60 VA (AC)
• Monitoring Input: 10 - 24 VDC, Approx. 10 mA
• Connection (Sensor Side): Unpluggable integrated 7-pin connector
• Hold Time: 0.5 s - 9 s (adjustable)
• LED Signal: Red and Green
• Mains Frequency: 50 - 60 Hz
• Temperature Range: -13 F to 136 F (operating); -22 F to 140 F (storage)
• Degree of Protection: IP41
• Dimensions: 5 1/2" (W) x 1 1/2" (H) x 2 2/5" (D)
• Weight: 3 1/2 oz
• Enclosure Material / Color: Polycarbonate / Black
• Cable Length: 8 ft
