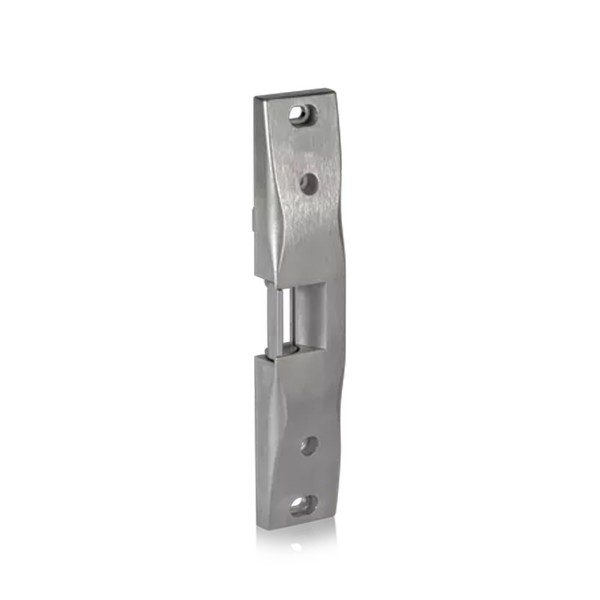

BEA Rim Exit Electric Strike (12-24V AC/DC) - 10STRIKERE

Key Features:

• Surface-mounted rim exit electric strike designed specifically for rim exit devices
• Completely surface mounted, eliminating the need to cut into the existing door frame
• Selectable operating modes: fail-safe or fail-secure depending on application
• Compatible with either 12 V DC or 24 V DC power input
• High-strength housing rated for heavy duty applications with simplified installation

Specifications:

• Operating Voltage: 12 V DC or 24 V DC
• Current Draw: 540 mA at 12 V DC; 270 mA at 24 V DC
• Static Strength: 1500 lbs (680 kg)
• Dynamic Strength: 70 ft-lb
• Endurance: 250 000 cycles (UL tested) / 1 000 000 cycles (factory tested)
• Selectable Mode: Fail-safe or Fail-secure (Field selectable)
• Operating Temperature Range: 14 F to 120 F (-10 C to +49 C)
• Housing Material: Brushed Stainless Steel (US32D finish)
• Frame Application: Suitable for Metal, Wood, or Aluminum Frames
• Output: Latch Throw: 1/2 in or 3/4 in depending on model variant
