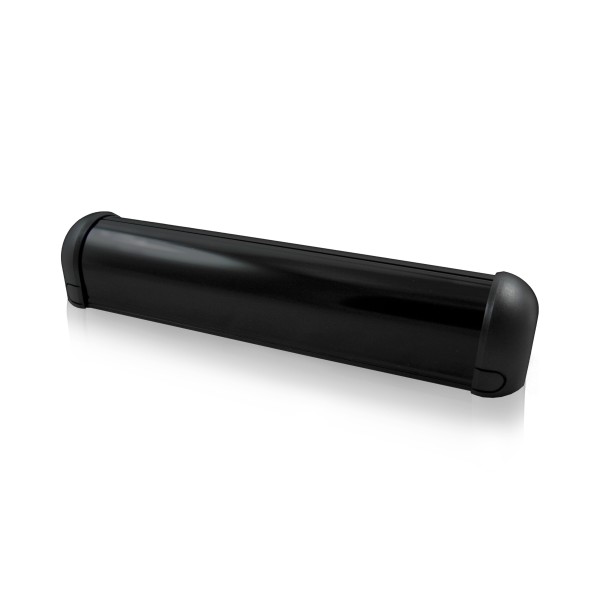

BEA Focus Surface-Mount Active Infrared Presence Sensor (24 VAC/DC) - 10FOCUS

Key Features:

• Surface-Mount Active Infrared Presence Sensor Designed for Compact Spaces
• Adjustable Detection Range with Rotating Cam for Fine Control
• Low-Profile Form Factor Suitable for Gate, Barrier, Drive-Thru, or Pass-Thru Applications
• Selectable Relay Output for NO or NC Contact
• Fast Detection Time Supports High-Speed or Traffic-Intense Installations

Specifications:

• Technology: Focused Active Infrared
• Detection Mode: Presence
• Power Supply: 24 VAC / VDC ~10 Percent
• Current Consumption: 60 mA (On) / 30 mA (Off)
• Output Interface: Relay; Max Contact Rating: 1 A at 30 V (Resistive)
• Detection Range: 0 - 8.2 ft (Approximate)
• Distance Adjustment: 2 - 8 ft via Rotating Cam with Linear Adjustment
• Detection Time: Less Than 50 ms
• Detection Signal Duration: Infinite Presence Detection
• LED Indicator: Green (No Detection)
• Operating Temperature Range: -30 F to 140 F
• Connection to Controller: 5-Conductor Cable
• Relay Output: NO or NC
