Details

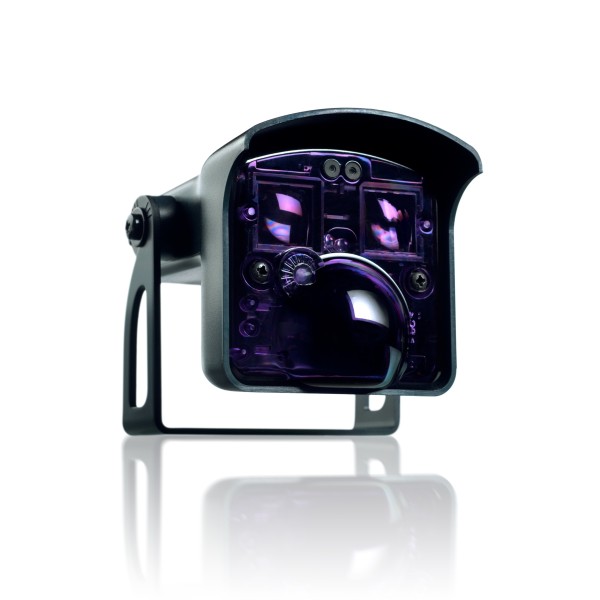

BEA IS40P Industrial Active Infrared Presence Sensor (24 VAC/DC) - 10IS40P

Key Features:

• Industrial-grade presence sensor with 40 active infrared spots for reliable detection in demanding settings
• Rugged IP65 enclosure suitable for harsh environments including dust, rain, and hose-directed water
• Programmable remote control and adjustable patterns for flexible detection zones
• Virtual loop functionality to emulate loop detectors for vehicle presence sensing
• Mounting height range from 8 ft to 16 ft to accommodate large doors, gates, or loading-dock applications

Specifications:

• Technology: Active Infrared
• Detection Mode: Presence
• Power Supply: 12 to 24 VAC ~10 Percent or 12 to 24 VDC -5 Percent / +30 Percent
• Power Consumption: Less Than 2 W
• Output: 2 Relays (Free of Potential Change-Over Contacts)
• Max Contact Voltage: 60 VDC / 125 VAC
• Max Contact Current: 1 A (Resistive)
• Max Switching Power: 30 W (DC) / 60 VA (AC)
• Installation Height: 8 ft to 16 ft
• Sensor Tilt Angle: 15 Degrees to 45 Degrees
• Reaction Time: 250 ms
• Minimum Target Speed: 0 in/s (0 cm/s)
• Operating Temperature Range: -22 F to 140 F (-30 C to +60 C)
• Degree of Protection: IP65 / NEMA 4
• Dimensions: 5 in x 4 in x 3.75 in
• Protection Housing: ABS & Polycarbonate - Housing Color: Black - Face Color: Transparent Purple
• Cable Length: 32 ft
