Details

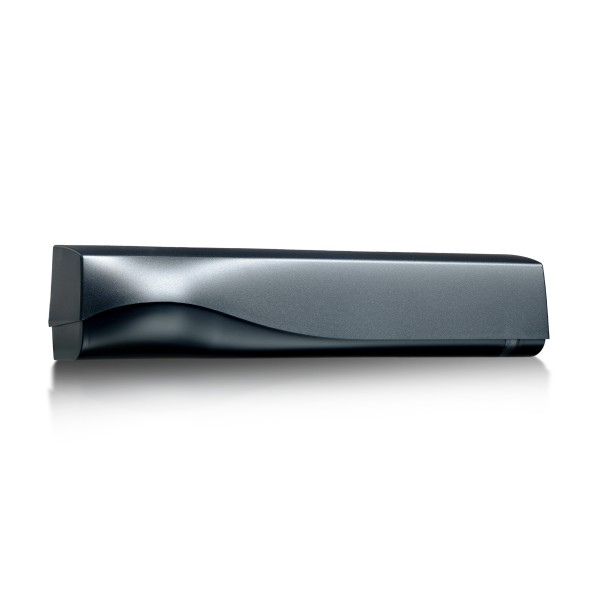

BEA IXIO Dual-Technology Sliding Door Sensor - 10IXIODT1

Key Features:

• Dual-technology combining microwave activation and active infrared presence detection
• Two 24-spot, high-density infrared safety curtains for precise presence detection
• Ten microwave activation sensitivity settings and three infrared safety immunity modes
• Four visible red alignment spots projected onto the floor to aid curtain alignment
• Intelligent programming and troubleshooting via menu-driven LCD display
• Fully internally monitored with capability for external monitoring
• Ability to distinguish between approaching and departing traffic
• Flush, ceiling, or surface mounting flexibility (with accessories)
• Compliant with ANSI / UL and industry safety standards

Specifications:

• Detection Mode: Motion / Presence
• Transmitter Frequency: 24.150 GHz (microwave)
• Transmitter Radiated Power: Approx. 20 dBm EIRP
• Transmitter Power Density: Approx. 5 mW / cm sq.
• Infrared Spot Size: 2" x 2"
• Max Spots per Curtain: 24
• Number of Curtains: 2
• Mounting Height: 6 1/2 ft - 11 1/2 ft
• Temperature Range (Sensor): -13 F to 131 F
• Supply Voltage: 12 - 24 VAC ~10%; 12 - 30 VDC ~10%
• Power Consumption: Approx. 2.5 W
• Output Relay 1 (Electromechanical): Max 30 VDC, 1 A, hold time 0.5 s - 9 s
• Output Relay 2 (Solid State): Max 42 VAC / VDC, 400 mA, hold time 0.3 s - 1 s
• Test / Monitoring Input: Low Approx. 1 V, High > 10 V (max 30 V); response time Approx. 5 ms
• Protection Degree: IP54
• Dimensions: 10.6" (W) x 2.25" (H) x 2.27" (D)
• Cable Length: 10 ft
• Norm / Compliance: ISO 13849 PL c, CAT 2; IEC 61496-1 ESPE Type 2; R&TTE / EMC / MD / RoHS directives
• LCD Operational Range: 14 F to 131 F
• Mounting Height Range (inches): 78 in - 138 in
